Open frame power supply TPS-MPU24S

AC/DCsingle-outputswitching

Product overview

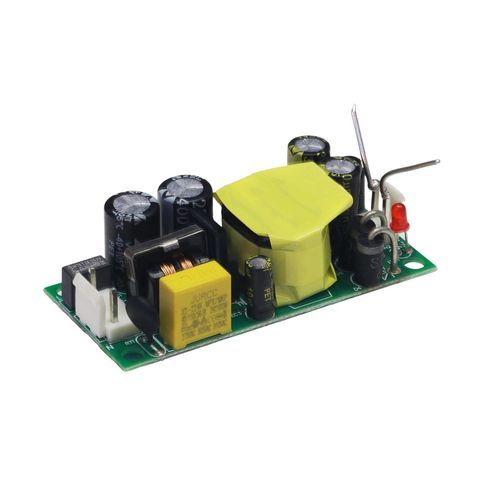

The TPS-MPU24S-12V is a member of the TPS-MPU24S series of single-output open-frame power supplies. It delivers a regulated 12 V output with a rated current of 2 A (operating range 0–2 A) and a rated power of 24 W, placing it in the 17.5 W / 24 W open-frame class. The unit measures 66.2×30.5×21.2 mm and weighs approx. 39 g. It is designed for natural convection cooling (fanless) for installations sensitive to acoustic noise.

Performance & Protection
The supply provides 3000 VAC input-to-output isolation and a regulated low-ripple output (max 40 mVp-p). Protection features include overload protection (115%–180% of rated power) and short-circuit protection implemented in hiccup mode with automatic recovery after fault removal. Typical efficiency is 85%. Input range: 90–264 VAC or 127–370 VDC; frequency 47–63 Hz. Operating conditions: -25 to 60 °C (see derating), 20–90% RH non-condensing. Compliance: GB4943.1-2011 and EN55032 Class B.

Key Features

• Series: TPS-MPU24S single-output open-frame power supplies
• Compact dimensions: 66.2 × 30.5 × 21.2 mm; weight approx. 39 g
• Natural convection cooling: 24 W output without fan (fanless)
• High isolation: 3000 VAC between input and output
• Stable regulated 12 V output with low ripple (max 40 mVp-p)
• Protections: overload and short-circuit (hiccup mode) with automatic recovery
• Typical efficiency: 85%
• Wide input compatibility: 90–264 VAC / 127–370 VDC, 47–63 Hz
• Operating range: -25–60 °C; 20–90% RH (non-condensing)
• Standards: GB4943.1-2011; EN55032 Class B

Specifications (table)
Dimensions (L×W×H) (mm): 66.2×30.5×21.2 mm
Efficiency: 85%
Input current: <200 mA
Input voltage: 90–264 VAC, 127–370 VDC
Output current: 2 A
Output power: 24 W
Output voltage: 12 V
Weight: approx. 39 g

Technical specifications

• Article number: OF1352
• Manufacturer code: OF0010085
• Manufacturer: TPS
• Model: TPS-MPU24S-12V
• Rated output voltage: 12 V
• Rated output current: 2 A (0–2 A)
• Rated output power: 24 W
• Maximum ripple: 40 mVp-p
• Isolation voltage: 3000 VAC
• Protections: short-circuit, overcurrent/overload (115%–180%) in hiccup mode with automatic recovery
• Input frequency: 47–63 Hz
• Input current: <200 mA
• Operating temperature: -25–60 °C (see derating)
• Storage/operating humidity: 20–90% RH (non-condensing)
• Standards/EMC: GB4943.1-2011; EN55032 Class B
