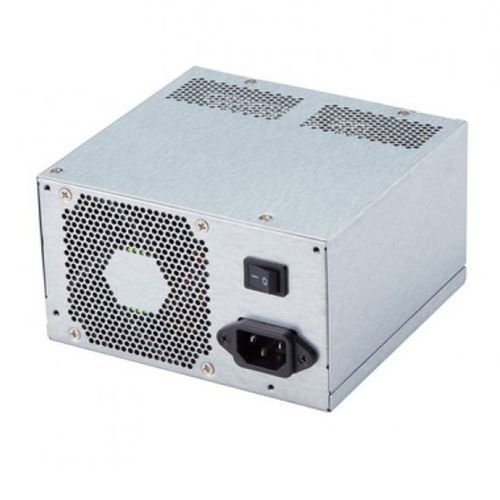

Benchtop power supply FSP500-70PFL (SK)

AC/DCswitchingwith short-circuit protection

500 W ATX Power Supply – FSP500-70PFL (SK) The FSP500-70PFL (SK) is a durable, high-performance 500 W Flex ATX (1U) industrial level power supply, engineered for use in demanding environments such as servers, IPCs, and automation platforms. Supporting universal input (90–264 VAC) with an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power, operating up to 5,000 meters above sea level with low ripple and noise. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit, and resettable power shutdown. It includes an MTBF of 100,000 hours at 25 °C. Cooling is provided by a built-in 80 mm cooling fan. With its global certifications, safety and EMC standards, it’s great for regulated applications. - Compact Form: 140 × 150 × 86 mm, ideal for space-constrained installations. - Power & Efficiency: 500 W continuous output with 80 PLUS Bronze efficiency and active PFC for reduced heat and energy cost. - Effective Cooling: 80 mm fan ensures thermal stability and less noise. - Full Electrical Protection: OVP, short-circuit protection on all outputs, and an active PFC. - Quality Assurance: MTBF of 100,000 h at 25 °C. - Universal Compatibility: Supports 90–264 VAC via C14 inlet. - Multiple Rails Output: - +3.3 V at 22 A - +5 V at 16 A - +12 V1 at 18 A - +12 V2 at 18 A - –12 V at 0.5 A - +5 VSB at 3 A, and optional –5 V at 0.1 A - Total +3.3 V/+5 V combined ≤ 120 W. - Certifications & Compliance: UL, FCC, TUV, CE. Specifications: - Cooling: Fan 80mm - Dimensions (L*W*H)(mm): 140*150*86mm - Output Power: 500W - Size: Flex ATX - Socket: C14 - Weight: 0.68kg - Article Number: AX1040 - Manufacturer Code: 9PA500BC03 - Manufacturer: FSP Technology Ltd.
