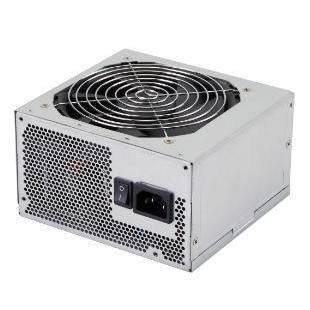

Tabletop power supply FSP650-50ABA

AC/DCswitchingwith short-circuit protection

650 W ATX Power Supply – FSP650-50ABA The FSP650-50ABA is a durable, high-performance 650 W ATX power supply, engineered for use in demanding environments such as PCs, workstations, and server systems. Supporting universal input (90–264 VAC) with an 80 PLUS Gold (~90% efficiency), and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit protection, and resettable shutdown functionality. Cooling is done by a built-in 120 mm cooling fan. With its global certifications, safety and EMC standards, it’s great for regulated applications. Key Features - Compact Form: 140 × 150 × 86 mm design, ideal for tight enclosures. - Power & Efficiency: 650 W continuous output with 80 PLUS Gold efficiency and active PFC ensuring clean, stable power with reduced heat and energy cost. - Effective Cooling: 120 mm fan ensures thermal stability and less noise. - Full Electrical Protection: OCP, OVP, plus low output ripple and noise. - Quality Assurance: 100% Hi-Pot and burn-in testing with an MTBF rating of 100,000 hours at 25 °C ensure enduring performance. - Universal Compatibility: Supports 90–264 VAC via C14 inlet. - Multi-Rail Output: - +3.3 V at 20 A - +5 V at 20 A - +12 V at 54.17 A - –12 V at 0.3 A - +5 V at 3 A - Combined +3.3 V and +5 V output limited to 100 W. - Certifications & Compliance: CE, CB, TUV, UL, RCM, Gost-R, BSMI, CCC, ROHS. Specifications - Dimensions (L*W*H)(mm): 140*150*86mm - Efficiency: 80PLUS Gold - Output Power: 650W - Socket: C14 Technical characteristics / specifications: - Model: FSP650-50ABA - Article Number: AX1066 - Manufacturer Code: 9PA6508601 - Manufacturer: FSP Technology Ltd. - Input Voltage: 90–264 VAC - MTBF: 100,000 hours at 25 °C - Fan: 120 mm built-in - Protections: OCP, OVP, OTP, short-circuit, resettable shutdown - Certifications: CE, CB, TUV, UL, RCM, Gost-R, BSMI, CCC, ROHS
