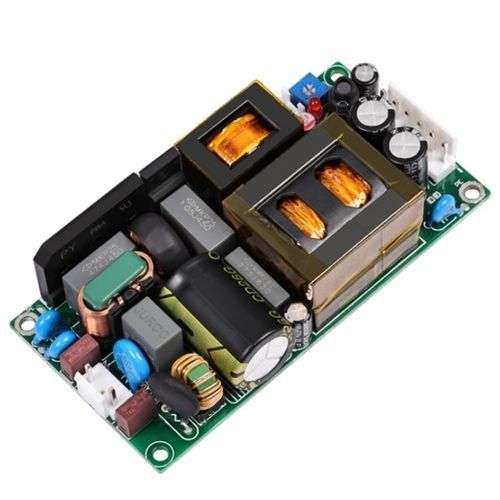

Open frame power supply TPS-GSH225S-19V

AC/DCsingle-outputvariable-output

TPS-GSH225S-19V Power Supply The TPS-GSH225S-19V is a high-performance Single Output Open Frame Power Supply within the TPS-GSH225S Series. It supports 100-264VAC and 141-370VDC input, ensuring compatibility with global power grids. As a 140W natural cooling power supply, it delivers 140W under natural convection; with 13CFM fan cooling, it functions as a 225W fan-assisted cooling power supply, providing up to 225W output to meet varying power demands. Operating efficiently within the -25℃ to +70℃ range, it ensures stable performance in diverse environmental conditions. It features 4000VAC isolation voltage for enhanced safety, separating input and output to protect connected equipment. Equipped with Active PFC function, it optimizes power factor, while the LED indicator offers clear visual status monitoring for easy operation. As an output voltage adjustable power supply, its output voltage ranges from 18~20.9V to suit specific application requirements. It boasts high efficiency (94%), minimizing energy loss, and integrates comprehensive protection mechanisms: input undervoltage protection, output short circuit protection, overcurrent protection, overvoltage protection, and overtemperature protection, ensuring reliable operation. With a compact 4×2×1 inches design, it saves installation space, ideal for space-constrained setups. Backed by a 3-year warranty, it offers long-term reliability. This power supply is suitable for industrial automation, industrial control systems, communication equipment, LED lighting, electronic instruments, and medical equipment. - Series Membership: Reliable model in the TPS-GSH225S Series, ensuring consistency with the series' quality standards. - Open-Frame Design: Structured as a single output open frame power supply for flexible integration in various setups. - Wide Input Range: Supports 100-264VAC and 141-370VDC input, suitable for global applications. - Flexible Cooling & Power: Functions as 140W natural cooling and 225W fan-assisted cooling (13CFM) to adapt to different cooling conditions. - Broad Temperature Adaptability: Operates in -25℃ to +70℃ environments, ensuring stability in extreme temperatures. - Safety & Efficiency: Equipped with 4000VAC isolation voltage and high efficiency (94%) for safe and energy-saving operation. - Enhanced Functions: Includes Active PFC function and LED indicator for optimized performance and easy monitoring. - Adjustable Output: Output voltage adjustable from 18~20.9V to meet specific voltage needs. - Comprehensive Protection: Features input undervoltage, output short circuit, overcurrent, overvoltage, and overtemperature protection for reliable operation. - Warranty Coverage: Backed by 3-year warranty for long-term reliability assurance. - Compact Size: Compact 4×2×1 inches design saves installation space in constrained environments. - Versatile Applications: Ideal for industrial automation, industrial control systems, communication equipment, and more. Technical Specifications: - Dimensions (L*W*H)(mm): 101.6*50.8*25.4mm - Efficiency: 93.6% - Input Current: 2.5A/115Vac, 1.2A/230Vac - Input Voltage: 100-264Vac, 141-370Vdc - Output Current: 7.36A (Natural cooling), 11.84A (Fan cooling) - Output Power: 140W/225W (Natural/Fan cooling) - Output Voltage: 19V - Weight: 165±10g - Article Number: OF1281 - Manufacturer Code: OF0010014 - Category: Openframe
