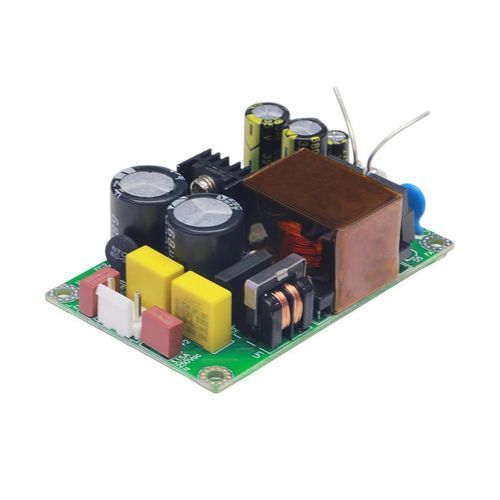

Open frame power supply TPS-MPT36S-24V

AC/DCregulatedsingle-output

The TPS-MPT36S-24V is a high-performance member of the TPS-MPT36S High Voltage Series single output open frame power supply, engineered to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 5V/12V/24V single output power supply, it provides a consistent 24V output with a rated current of 1.5A (176-500VAC) and a current range of 0.1~1.5A under natural cooling, offering a rated power of 36W, making it part of the 30W/36W open frame power supply range. As a 100V-500VAC/141V-707VDC input power supply, it supports a wide input range, enabling versatile operation in diverse power grids, including compatibility with 110V/220V/380V systems. It features compact dimensions of 76×50×26.5mm (765026.5mm open frame power supply) and a lightweight design of approximately 95g (95g open frame power supply), ideal for space-constrained installations. This power supply boasts a 3000VAC isolated withstand voltage, qualifying it as a 3000VAC isolated withstand voltage power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of 80mVp-p, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over power protection power supply, featuring overload (120%~180% of rated power) protection in hiccup mode with automatic recovery after fault removal.
