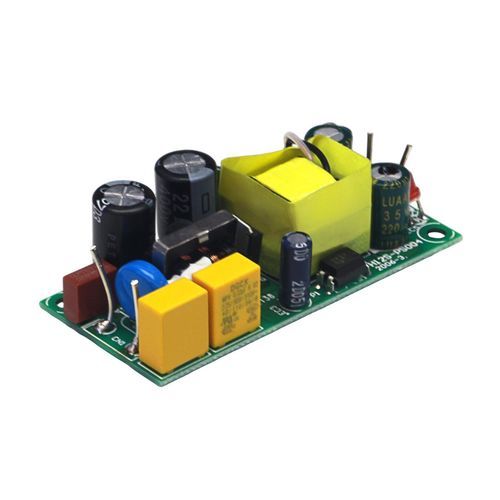

Open frame power supply TPS-H12SP-12V

AC/DCsingle-outputswitching

Product overview
The TPS-H12SP-12V is an open-frame, single-output power supply from the TPS-H12SP High Voltage Series. Its compact footprint (66 × 30.5 × 20 mm) and light weight (33 g) make it suitable for installations with limited space. The unit accepts a wide input range (100–400 VAC or 127–610 VDC) and uses natural (fanless) cooling for low-noise operation. Rated output power is 10 W with a rated output current of 800 mA (operating range 0–830 mA). The supply is specified for operation from -20°C to +50°C with defined load derating, and employs a 40–60 kHz switching frequency. Output voltage accuracy is ±1% with an adjustable output range of 11.95–12.2 V. Comprehensive protection and safety features ensure reliable long-term operation.

Key features

• Series affiliation: Part of the TPS-H12SP High Voltage Series.
• Design & dimensions: Open-frame single-output topology; 66 × 30.5 × 20 mm; weight 33 g.
• Input compatibility: Wide universal input 100–400 VAC and 127–610 VDC for global use.
• Cooling & power: Natural (fanless) cooling; rated power 10 W; rated output current 800 mA (0–830 mA operating range).
• Operating range: -20°C to +50°C (100% load -20°C to +35°C; 60% load at +50°C).
• Accuracy & efficiency: Output voltage accuracy ±1%; efficiency >80%.
• Protection features: Overload protection (130–150% with auto-recovery); short-circuit protection (hiccup mode with auto-recovery); over-voltage protection (DC output >130%).
• Safety & reliability: 3 kVAC isolation/withstand, 40–60 kHz switching frequency, full-load burn-in tested.

Technical specifications

• Model: TPS-H12SP-12V (single output, open-frame)
• Dimensions (L×W×H): 66 × 30.5 × 20 mm
• Weight: 33 g
• Input voltage: 100–400 VAC; 127–610 VDC
• Input current: 0.15 A–0.09 A
• Output voltage: 12 V (adjustable 11.95–12.2 V)
• Output current: 800 mA (0–830 mA range)
• Output power: 10 W
• Efficiency: >80%
• Switching frequency: 40–60 kHz
• Voltage accuracy: ±1%
• Operating temperature: -20°C to +50°C (100% load -20°C to +35°C; 60% load at +50°C)
• Protections: Overload (130–150% auto-recovery); short-circuit (hiccup with auto-recovery); over-voltage (DC >130%)
• Isolation / withstand voltage: 3 kVAC
• Reliability test: Full-load burn-in performed
