AC/DC power supply FSP250-60MDN

TUVCERoHS

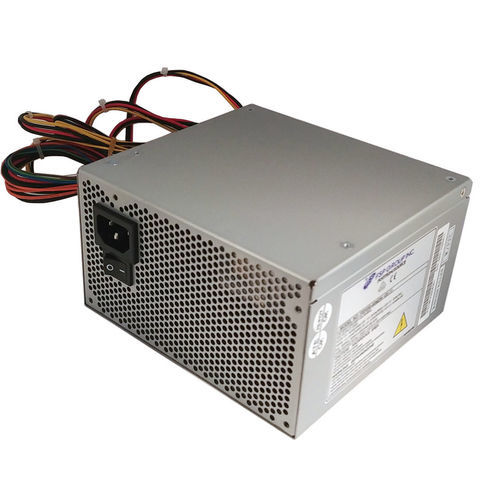

250 W ATX Power Supply – FSP250-60MDN The FSP250-60MDN is a full-size 250 W ATX (PS2) power supply designed for compact PC systems and industrial builds. Certified with active PFC (Power Factor Correction) and featuring a 120 mm cooling fan, this PSU delivers stable and efficient performance. It includes a standard C14 socket, robust connectors for Pentium 4/Athlon CPUs, and operates reliably across a wide input voltage range—making it ideal for both legacy and modern systems. Specifications include comprehensive voltage rails compliant with ATX requirements. Key Features - Compact Form: 140 × 150 × 86 mm design, ideal for tight enclosures. - Power & Efficiency: 250 W continuous output with an active PFC ensuring clean, stable power with reduced heat and energy cost. - Effective Cooling: 120 mm fan ensures thermal stability and less noise. - Wide AC Input: Supports typical 230–240 VAC at 3 A, 50–60 Hz, adaptable to various power environments via C14 inlet. - Multi-Rail Output: - +3.3 V at 14 A - +5 V at 25 A - +12 V at 8 A - –12 V at 0.8 A - +5 VSB @ 2 A - -5 VSB @ 0.3 A - Combined +3.3 V and +5 V output limited to 165 W. - Certifications & Compliance: UL, CB, TUV, CE, FCC, ROHS. Reliable 250 W ATX PSU—active PFC, quiet 120 mm cooling, versatile voltage rails, Pentium 4/Athlon CPU connector, standard C14 inlet, and compact ATX size. Ideal for industrial PCs, legacy systems, or embedded applications. Specifications - Cooling: Fan 120mm - Dimensions (L*W*H)(mm): 140*150*86mm - Output Power: 250W - Size: PS2 ATX - Socket: C14 - Weight: 1.90kg - Article Number: AX1073 - Manufacturer Code: 9PA2506301 - Manufacturer: FSP Technology Ltd.
