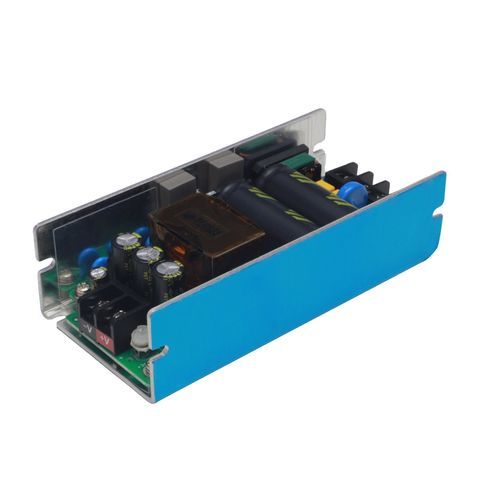

Open frame power supply TPS-MPT120S-48V

AC/DCsingle-outputadjustable

The TPS-MPT120S-48V is a high-performance member of the TPS-MPT120S High Voltage Series single output open frame power supply, designed to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 12V/24V/48V single output power supply, it provides a consistent 48V output with a rated current of 2.5A (176-500VAC) and a current range of 0-2.5A under natural cooling, offering a rated power of 120W, classifying it as a 120W open frame power supply. As a wide input voltage range 176VAC-500VAC power supply, it supports 176~500VAC or 249~707VDC, with 50% power derating at 100~176VAC (142~249VDC), enabling versatile operation in diverse power grids. It is an output adjustable voltage power supply with an adjustable voltage range of 46~52V, allowing for flexible output calibration. This power supply boasts a 3000VAC isolated withstand voltage, qualifying it as a 3000VAC isolated withstand power supply for safe electrical separation. It features a maximum ripple of 100mVp-p, making it a 50mVp-p/100mVp-p ripple power supply, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over voltage protection power supply (overcurrent: 110%-170% of rated current with hiccup mode and auto-recovery; overvoltage: 110%-130% of rated voltage with shutdown and restart recovery; short-circuit: hiccup mode with auto-recovery) and an input undervoltage over temperature protection power supply (undervoltage: 90-100V; over temperature: hiccup mode with auto-recovery).
