Open frame power supply TPS-GSH600S

AC/DCsingle-outputwith overload protection

Product overview

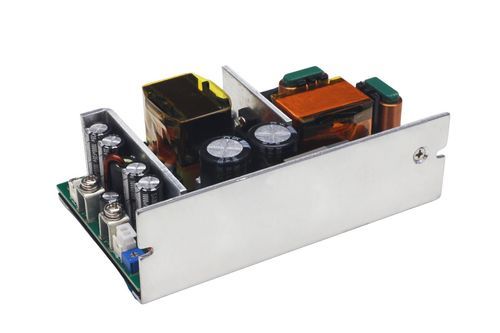

The TPS-GSH600S-48V is a single-output open-frame power supply from the TPS-GSH600S series with an aluminium enclosure. It supports wide AC and DC input ranges for global use and offers two cooling-dependent power ratings: 320 W by natural convection and up to 600 W with forced-air cooling (25 CFM). The unit provides a nominal 48 V output (adjustable 44–54 V), Active PFC, LED status indicator and a remote sensing terminal. Isolation voltage is 3750 VAC and operating temperature range is -25 °C to +70 °C.

Key features

• Single-output open-frame design with aluminium enclosure.
• Wide input compatibility: AC and DC inputs for global operation.
• Cooling-dependent power: 320 W (natural convection); up to 600 W with 25 CFM forced-air fan.
• Nominal 48 V output, adjustable 44–54 V; output current up to 6.67 A (natural) / 12.5 A (fan-cooled).
• High conversion efficiency (up to 94–95% under specific conditions).
• Safety isolation: 3750 VAC.
• Enhanced functions: Active PFC, LED indicator, remote sensing terminal.
• 3-year warranty.

Technical specifications

• Dimensions (L×W×H): 127 × 76.2 × 40 mm.
• Output power: 320 W (natural convection) / 600 W (forced-air, 25 CFM).
• Output voltage (nominal): 48 V; adjustable range 44–54 V.
• Output current: 0–6.67 A (natural cooling); 0–12.5 A (fan cooling).
• Efficiency: 92% / 94% (115 VAC / 230 VAC); up to ~95% in specific conditions.
• Input voltage: 100–264 VAC and 141–370 VDC (spec table may list 100–240 VAC).
• Input current: 6 A @ 115 VAC, 3 A @ 230 VAC.
• Isolation voltage: 3750 VAC.
• Operating temperature: -25 °C to +70 °C.
• Weight: 480 ± 20 g.
• Fan specification for forced convection: 24 V, 25 CFM (required for 600 W rating).
• Article Number: OF1293.
• Manufacturer Code: OF0010026.
• Manufacturer / Brand: TPS.

Protections and functions

• Input undervoltage protection.
• Output short-circuit protection.
• Overcurrent protection.
• Output overvoltage protection.
• Overtemperature protection.

Applications

• Industrial automation and control systems.
• Communication equipment and electronic instruments.
• LED lighting applications and smart home systems.
• Medical devices (compliant use where applicable).
