Adapter power supply FSP065-A1BR3AC/DCregulatedmultiple-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- adapter
- Type
- AC/DC
- Output
- regulated, multiple-output
- Protection
- with short-circuit protection, with overheating protection
- Certifications
- CE, RoHS, UL
- Connection
- with USB outlet
- Other characteristics
- compact
- Input voltage
Min.: 90 V
Max.: 264 V
- Output voltage
5 V, 9 V, 15 V, 20 V
- Current
3 A, 3.25 A
- Power
65 W
Description

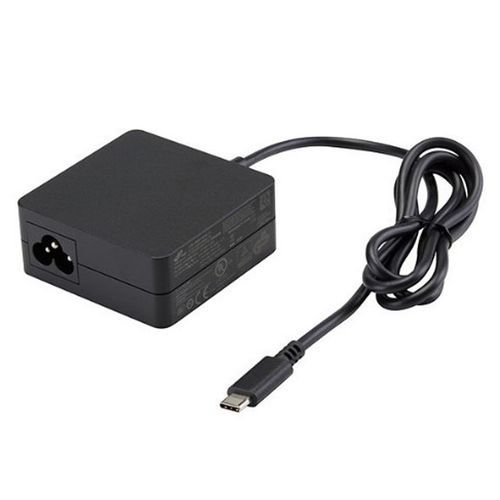

65 W Desktop AC-DC Adapter – FSP065-A1BR3
The FSP065-A1BR3 is a 65 W AC-DC desktop adapter designed for embedded systems, displays, and peripherals. It features wide AC input (90–264 VAC) and a regulated output with low ripple. Integrated protections (OVP, OCP, SCP, OTP) ensure reliable long-term use.
Key Features
- Output: 65 W regulated DC.
- Input: 90–264 VAC, 47–63 Hz.
- Protections: OVP, OCP, SCP, OTP.
- Applications: Displays, peripherals, industrial electronics.
Specifications
- Cable Length: 1000mm
- Connector: USB-C
- Dimensions (L*W*H)(mm): 66*66*28mm
- Efficiency: DoE Level VI
- Input Voltage: 90-264Vac
- Output Current: 3A/3.25A
- Output Power: 65W
- Output Voltage: 15Vdc, 20Vdc, 5Vdc, 9Vdc
- Socket: C6
- Weight: 0.18kg
- Article Number: DA1179
- Manufacturer Code: 9NA0658207
- Manufacturer: FSP Technology Ltd.
Legislation and Compliance
- RoHS
- CE
- UL
- WEEE
- UKCA
