Open frame power supply TPS-GSH450S-24V
AC/DCsingle-outputswitching

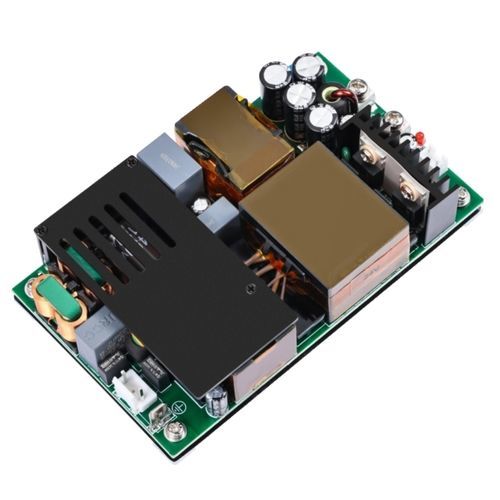

Open frame power supply - TPS-GSH450S-24V - TPS Elektronik GmbH - AC/DC / single-output / switching

Add to favorites

Compare this product

Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format

open frame

Type

AC/DC

Output

single-output

Technology

switching

Protection

with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection

Certifications

CE, RoHS

Applications

for industrial applications, for automation

Other characteristics

compact, wide input range, high-performance, RoHS compliant, fan cooled, convection-cooled

Input voltage

Max.: 305 V

Min.: 85 V

Output voltage

Max.: 27 V

Min.: 22.8 V

Current

Max.: 18.75 A

Min.: 0 A

Power

Max.: 450 W

Min.: 250 W

Description

The TPS-GSH450S-24V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH450S Series, featuring an aluminum enclosure and a compact 5×3 inches design (L×W×H: 127x76.2x28mm). It supports 85-305VAC and 120-420VDC input, adapting to global power grids. As a 250W natural convection power supply, it delivers 250W under natural convection; with 12V 20CFM fan cooling, it functions as a 450W forced convection power supply, providing up to 450W output. Operating in a -25℃ to +70℃ range, it ensures stable performance, equipped with 3750VAC isolation voltage for safety, active PFC function to optimize power factor, and LED indicator for status monitoring. As an output voltage adjustable power supply, its range is 22.8~27V. With high efficiency (95.5% typical, 92%/95% at 115VAC/230VAC), it includes comprehensive protection: input undervoltage, output overvoltage, overcurrent, output short circuit, and overtemperature protection. Suitable for industrial automation, industrial control systems, communication equipment, LED systems, smart home devices, electronic instruments, and medical equipment. - Series Membership: Part of TPS-GSH450S Series, ensuring consistent quality. - Design & Size: Single Output Open Frame with aluminum enclosure, compact 5×3 inches. - Input Compatibility: Supports 85-305VAC and 120-420VDC for global use. - Cooling & Power: 250W natural convection, 450W forced convection (12V 20CFM). - Temperature Range: Operates in -25℃ to +70℃ environments for stability in extreme conditions. - Safety & Efficiency: 3750VAC isolation voltage, high efficiency up to 95.5%. - Enhanced Functions: Active PFC, LED indicator, output voltage adjustable. - Comprehensive Protection: Input undervoltage, output overvoltage, overcurrent, output short circuit, and overtemperature protection. - Versatile Applications: Suitable for industrial automation, communication equipment, smart home devices, etc. Specifications: - Dimensions (L*W*H)(mm): 127*76.2*28mm - Efficiency: 92%/95%(115Vac/230Vac) - Input Current: 4A/115Vac, 2.2A/230Vac, 2A/277Vac - Input Voltage: 85-305Vac - Output Current: 0-10.42A (Natural cooling), 0-18.75A (Fan cooling) - Output Power: 250W/450W (Natural/Fan cooling) - Output Voltage: 24V - Weight: 420±20g
