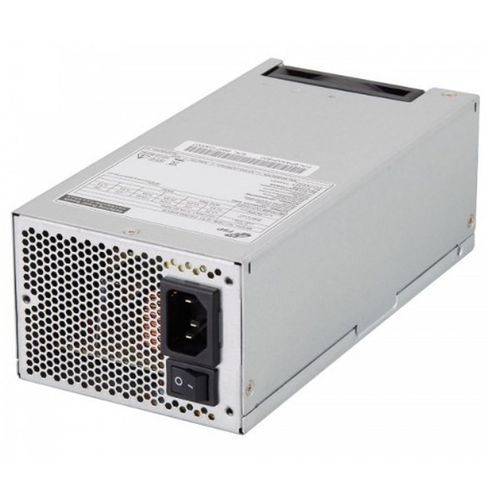

2U power supply FSP500-50WCB

AC/DCregulatedmultiple-output

500 W 2U Industrial Power Supply – FSP500-50WCB The FSP500-50WCB is a durable, high-performance 500 W/2U industrial level power supply, engineered for use in demanding environments such as IPC controllers, workstations, servers, and communication systems. Supporting universal input (90–264 VAC) with an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), and short-circuit safeguards. Cooling is provided by a built-in 40 mm cooling fan. With its global certifications, safety and EMC standards, it’s great for regulated applications. Key Features - Compact Form: 190 × 100 × 40.5 mm design, ideal for industrial rack setup. - Power & Efficiency: 500 W continuous output with 80 PLUS Bronze efficiency and active PFC for reduced heat and energy cost. - Effective Cooling: 40 mm fan paired with IEC 62368 ensures thermal stability and less noise. - Full Electrical Protection: OCP, OVP, short-circuit, and resettable shutdown features to safeguard the system. - Quality Assurance: 100% Hi-Pot tested, burn-in at 50 °C, and MTBF rating of 100,000 hours at 25 °C ensure enduring performance and operational altitude up to 5,000 m. - Universal Compatibility: Supports 90–264 VAC via C14 inlet. - Multi-Rail Output: Designed with multiple voltage outputs to support diverse components. - Certifications & Compliance: UL, FCC, TUV, CE, ROHS, CCC. Specifications - Cooling: Fan 40mm - Dimensions (L*W*H)(mm): 190*100*40.5mm - Efficiency: 80PLUS Bronze - Output Power: 500W - Size: 2U - Socket: C14 - Weight: 1.53kg - Article Number: AX1058 - Manufacturer Code: 9PA500CP01 - Manufacturer: FSP Technology Ltd.
