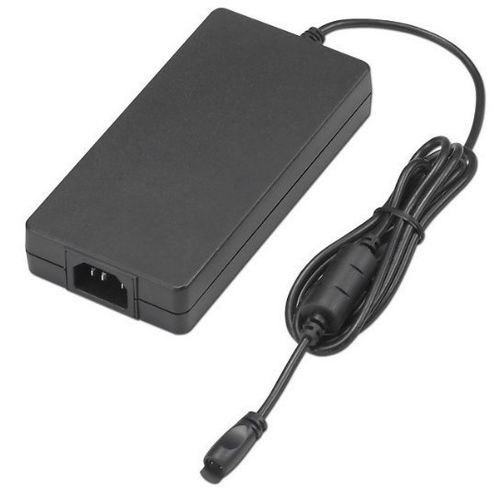

Adapter power supply FSP150-AHAN3

AC/DCregulatedsingle-output

150 W Desktop AC-DC Adapter - FSP150-AHAN3 The FSP150-AHAN3 is a high-capacity 150 W desktop AC-DC adapter engineered for performance-demanding systems such as industrial PCs, embedded controllers, network devices, and displays. It supports wide-range AC input (90–264 VAC) and provides a tightly regulated DC output with low ripple and noise. Built-in protections and rigorous burn-in/Hi-Pot testing ensure long-term reliability in professional environments. With efficient energy design (DOE/ErP compliant) and a robust enclosure, the FSP150-AHAN3 integrates easily where dependable power is essential. - Universal Input: 90–264 VAC, 47–63 Hz. - Output Power: 150 W regulated DC. - Efficiency: DOE/ErP compliant; low no-load consumption. - Protections: OVP, OCP, OTP, SCP. - EMC: ITE Class B compliance. - Use Cases: IPC, embedded, networking, displays. Specifications - Cable Length: 1800mm - Connector: DIN Power 4Pol - Dimensions (L*W*H)(mm): 151*75*25mm - Efficiency: DoE Level VI - Input Voltage: 90-264Vac - Output Current: 0-12.5A - Output Power: 150W - Output Voltage: 12Vdc - Socket: C14 - Weight: 0.41kg - Article Number: DA1106 - Manufacturer Code: 9NA1505313 - Manufacturer: FSP Technology Ltd.
