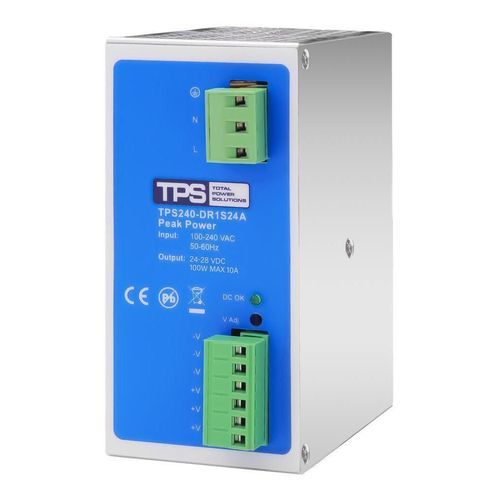

DIN rail power supply TPS240-DR1S24A

AC/DCdual-outputswitching

Product Details The TPS240-DR1S24A is a high-quality 240W power supply from the TPS100-320W Peak DR+ Series, offering a versatile range of 100W/150W/240W/320W DIN rail power supply options. It features a 170% power boost for 10 seconds, making it suitable for temporary high-power demands in industrial settings. The unit uses convection cooling, eliminating the need for fans and reducing maintenance, and achieves an impressive 93% efficiency to minimize energy loss and operational costs. Comprehensive protection mechanisms include OTP (Over Temperature Protection), OVP (Over Voltage Protection), and overload protection, safeguarding connected equipment. The power supply is UL, CE, and TUV certified (UL60950-1), ensuring compliance with international safety standards, and is backed by a 5-year warranty for long-term reliability. Ideal for automation, LED lighting, and telecommunication applications, the TPS240-DR1S24A accepts an 85-264VAC input (47-63Hz) and provides a 24-28VDC output. It operates within a 0-70°C ambient temperature range (with derating from 50°C to 70°C) and is designed for easy installation on DIN rail TS 35/7.5 or TS 35/15 vertical, integrating seamlessly into standard industrial setups. - Series Affiliation: Part of the TPS100-320W Peak DR+ Series, consistent performance across 100W/150W/240W/320W range. - Power Boost: 170% power boost for 10 seconds for temporary high loads. - Efficient Cooling: Convection cooling for stable operation without fan maintenance. - High Efficiency: 93% efficiency to reduce energy consumption. - Comprehensive Protection: OTP, OVP, and overload protection to safeguard equipment. - Certifications: UL, CE, TUV certified (UL60950-1), meeting global safety standards. - Warranty: 5-year warranty for long-term reliability. - Versatile Applications: Suitable for automation, LED lighting, and telecommunication. - Input/Output: 85-264VAC input, 24-28VDC output. - Operating Temperature: 0-70°C ambient (with derating). - Easy Installation: DIN rail TS 35 mounting for quick integration. Specifications - Efficiency: 93% - Electrical Phase: 1 - Input Voltage: 85-264Vac, 120-370Vdc - Number of Outputs: 2 - Output Current: 10A - Output Power: 240W - Output Voltage: 24-28V
