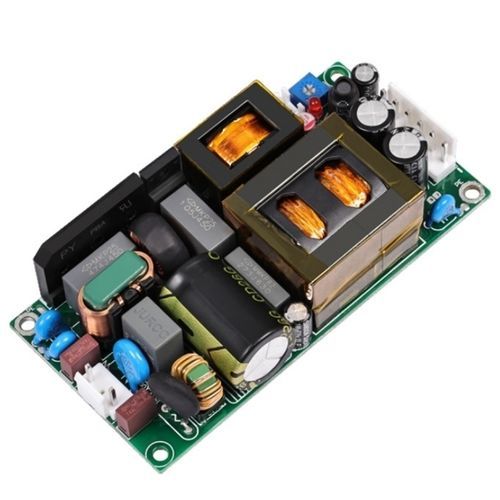

Open frame power supply TPS-GSH225S-12VAC/DCsingle-outputvariable-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- open frame
- Type
- AC/DC
- Output
- single-output, variable-output
- Protection
- with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection
- Certifications
- CE, RoHS
- Applications
- for industrial applications, laboratory, electronic equipment, for medical applications, for automation, for LED lighting
- Other characteristics
- compact, wide input range, high-performance, fan cooled
- Input voltage
Max.: 370 V
Min.: 100 V
- Output voltage
Max.: 12.8 V
Min.: 11.4 V
- Current
Max.: 18.75 A
Min.: 11.67 A
- Power
Max.: 225 W
Min.: 140 W
Description
TPS-GSH225S-12V Power Supply
The TPS-GSH225S-12V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH225S Series. It supports 100-264VAC and 141-370VDC input, adapting to global power grids. As a 140W natural cooling power supply, it delivers 140W under natural convection; with 13CFM fan cooling, it works as a 225W fan-assisted cooling power supply, providing up to 225W output. Operating in -25℃ to +70℃, it ensures stable performance. It features 4000VAC isolation voltage for safety, Active PFC function to optimize power factor, and LED indicator for status monitoring.
As an output voltage adjustable power supply, its range is 11.4~12.8V. With high efficiency (94%), it includes comprehensive protection: input undervoltage, output short circuit, overcurrent, overvoltage, and overtemperature protection. Compact at 4×2×1 inches, it comes with a 3-year warranty, suitable for industrial automation, control systems, communication equipment, LED lighting, electronic instruments, and medical equipment.
- Series Membership: Part of TPS-GSH225S Series, ensuring consistent quality.
- Open-Frame Design: Single Output Open Frame for flexible integration.
- Wide Input Compatibility: Supports 100-264VAC and 141-370VDC input.
- Flexible Cooling: 140W natural cooling, 225W fan-assisted (13CFM).
- Temperature Resilience: Operates in -25℃ to +70℃ environments.
- Safety & Efficiency: 4000VAC isolation, 94% efficiency.
- Enhanced Monitoring: Active PFC and LED indicator.
- Adjustable Output: Output voltage adjustable (11.4~12.8V).
- Comprehensive Protection: Input undervoltage, output short circuit, overcurrent, overvoltage, overtemperature protection.
- Compact & Warranted: 4×2×1 inches, 3-year warranty.
- Versatile Applications: Suitable for industrial automation, control systems, communication equipment, and more.
Specifications
- Dimensions (L*W*H)(mm): 101.6*50.8*25.4mm
- Efficiency: 93%
- Input Current: 2.5A/115Vac, 1.2A/230Vac
- Input Voltage: 100-264Vac, 141-370Vdc
- Output Current: 11.67A (Natural cooling), 18.75A (Fan cooling)
- Output Power: 140W/225W (Natural/Fan cooling)
- Output Voltage: 12V
- Weight: 165±10g
