Adapter power supply FSP045-RBCN3

AC/DCregulatedsingle-output

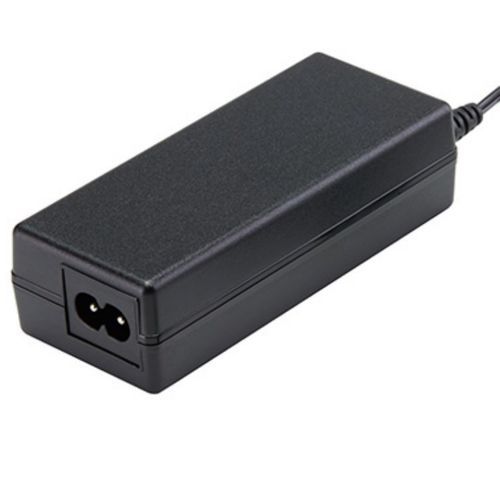

45 W Desktop AC-DC Adapter – FSP045-RBCN3 The FSP045-RBCN3 is a 45 W desktop AC-DC adapter ideal for notebooks, embedded systems, peripherals and general ITE applications. It accepts universal AC input (90–264 VAC), ensuring stable performance in varied environments. The regulated 19 VDC / 2.37 A output delivers clean power with low ripple and noise. Certified to global safety standards (UL / cUL / CE / GS / TUV / FCC / CCC) and compliant with DOE Level VI efficiency, the FSP045-RBCN3 ensures reliability and energy-saving operation. Compact in size, it fits space-constrained installations while providing robust protection and performance. Key Features - Power Output: 45 W (19 V, 2.37 A) - Input Voltage: 90–264 VAC (universal) - Certifications / Safety: UL, cUL, CE, GS, TUV, FCC, CCC - Efficiency: DOE Level VI - Design: Compact desktop form factor - Applications: Notebooks, embedded, ITE, small devices - Protection & Compliance: RoHS, WEEE compliant Specifications - Cable Length: 1200mm - Connector: 5.5*2.5*11mm 90° - Dimensions (L*W*H)(mm): 108*46*30mm - Efficiency: DoE Level VI - Input Voltage: 90-264Vac - Output Current: 2.36A - Output Power: 45W - Output Voltage: 19Vdc - Socket: C8 - Article Number: DA1176 - Manufacturer Code: 9NA0452814 - Manufacturer: FSP Technology Ltd.
