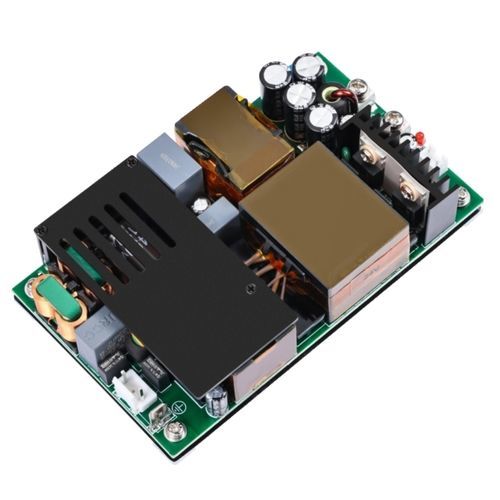

Open frame power supply TPS-GSH450S-12V

AC/DCsingle-outputswitching

TPS-GSH450S-12V Power Supply The TPS-GSH450S-12V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH450S Series, featuring an aluminum enclosure and a compact 5×3 inches design (L×W×H: 127x76.2x28mm). It supports 85-305VAC and 120-420VDC input, adapting to global power grids. As a 250W natural convection power supply, it delivers 250W under natural convection; with 12V 20CFM fan cooling, it functions as a 450W forced convection power supply, providing up to 450W output. Operating in a -25℃ to +70℃ range, it ensures stable performance, featuring 3750VAC isolation voltage for safety, active PFC function to optimize power factor, and LED indicator for status monitoring. As an output voltage adjustable power supply, its range is 11.4~12.8V. With high efficiency up to 95.5% (91%/93.5% at 115VAC/230VAC typically), it includes comprehensive protection: input undervoltage, output overvoltage, overcurrent, output short circuit, and overtemperature protection. Suitable for industrial automation, industrial control systems, communication equipment, LED systems, smart home devices, electronic instruments, and medical equipment, it meets diverse application needs. Key Features - Series Membership: Part of TPS-GSH450S Series, ensuring consistent quality. - Design & Size: Single Output Open Frame with aluminum enclosure and compact 5×3 inches dimensions. - Input Compatibility: Supports 85-305VAC and 120-420VDC for global use. - Cooling & Power: 250W natural convection and 450W forced convection (12V 20CFM). - Temperature Range: Operates in -25℃ to +70℃ environments for stability in extreme conditions. - Safety & Efficiency: 3750VAC isolation voltage and high efficiency up to 95.5%. - Enhanced Functions: Active PFC, LED indicator, and output voltage adjustment. - Comprehensive Protection: Input undervoltage, output overvoltage, overcurrent, output short circuit, and overtemperature protection. - Versatile Applications: Suitable for industrial automation, communication equipment, medical devices, etc. Specifications - Dimensions (L×W×H)(mm): 127×76.2×28mm - Efficiency: 91%/93.5% (115Vac/230Vac) - Input Current: 4A/115Vac, 2.2A/230Vac, 2A/277Vac - Input Voltage: 85-305Vac - Output Current: 0-20.83A (Natural cooling), 0-37.5A (Fan cooling) - Output Power: 250W/450W (Natural/Fan cooling) - Output Voltage: 12V - Weight: 420±20g - Model: TPS-GSH450S-12V - Article Number: OF1285 - Manufacturer Code: OF0010018 - Manufacturer: TPS
