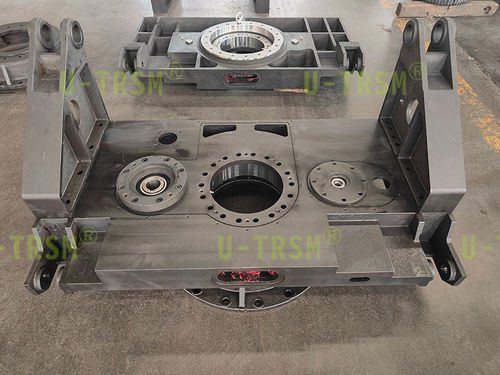

Worm gear slewing drive 2-S-II-O-0315-2

double

This slewing drive is used in automated rotary platform equipment, both sides of the arm hole and the platform hole at an angle, used to connect the lifting equipment to use, the integrated design of this slewing drive and platform saves the installation space of the equipment, and can avoid the cumulative increase of the error caused by too many installation fits. After continuous communication with the customer and repeated 3D design simulation experiments, U-TRSM developed this slewing drive for customer. The double gear design, one is the power gear and the other gear is used for the slave with the encoder to accurately feedback the rotation angle. This slewing drive gear reaches 6 levels, making the return clearance greatly reduced to meet customer requirements, and the slewing drive is integrated into the base, and the integrated design makes the slewing drive more convenient and simple in terms of processing. The integrated slewing drive designed and developed by U-TRSM is gradually becoming a trend in the market. According to the rich experience of the U-TRSM design engineers and their continuous efforts, many customers integrate the base, platform, support arm and other components with the slewing drive, and this integrated design makes it easier and faster for customers to design the whole machine, and also makes the slewing drive of U-TRSM rapidly develop in the direction of diversification, integration and intelligence.
