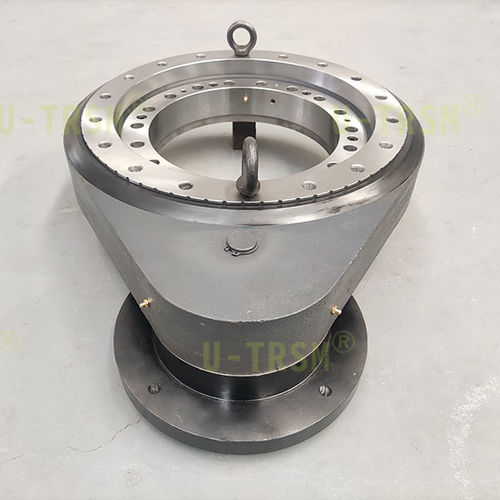

Slewing drive S-III-O-0455

vertical installation high-speed anti-corrosion slewing drives are used in automated production lines to drive equipment to do reciprocating motion. The slewing drives are installed vertically on the customer’s bases, operating speeds are 50 rpm. The output torques are dynamic and change at any time. During use, there will be slightly corrosive liquid contacting the slewing drive housings, which require the slewing drives to have good anti-corrosion performance. According to the customers’ requirements, we recommended S-III-O-0455 gear type slewing drives. We choose appropriate parameters to design the slewing drives, which can meet high speed (limited speed of 80 rpm), and can also run smoothly under vertical installation conditions. The output torque of this heavy duty slewing drive is large enough to handle the dynamic torque of the equipment and the impact load of the teeth. For the anticorrosion of the housings, we adopt the processes of phosphating, spraying epoxy zinc-rich paint, and spraying polyurethane topcoat. The housings after spraying can be used in severe corrosive environments. After the products are delivered to the user, they work non-stop for eight hours a day. After half a year of use, after-sales follow-up feedback, all parts of the slewing drive perform well without exception. We often design slewing drives with high speed, high impact load and complex working conditions for our customers, and we have unique ideas in the selection, design and manufacture. If you need slewing drives, please contact us.
