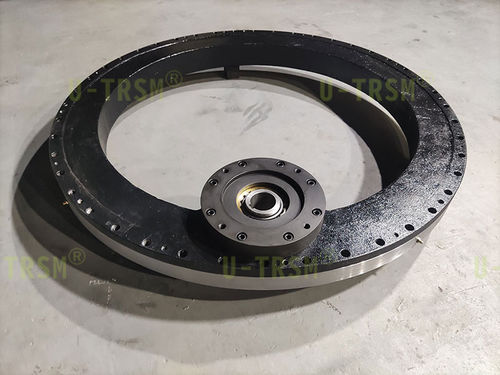

Slewing drive S-II-I-1000

Precision gear grinding internal gear slewing drive S-II-I-1000 is used in automation equipment, we customized internal gear II series, rotary center diameter 1000mm, module 8 slewing drive according to the customer’s equipment needs. The slewing drive adopts zero clearance design, gear quenching and then gear grinding processing, the finished product of the inner gear slewing drive can achieve runout ≤ 0.03mm, the max gear clearance of the whole circle ≤ 0.15mm, slewing drive no-load starting torque is 120N.M, flexible rotation without clamping stagnation, fully meet the requirements of use. The internal gear slewing drive has the advantage of saving external space, and the reducer and motor can be installed inside the slewing drive.The internal gear transmission has high output torque and smooth transmission, which is very suitable for automated production lines and machine tools.The slewing drive of Unique Transmission can be customized according to customer requirements and can be optimized according to the needs of the design, maximum to meet customer requirements.
