Worm gear slewing drive

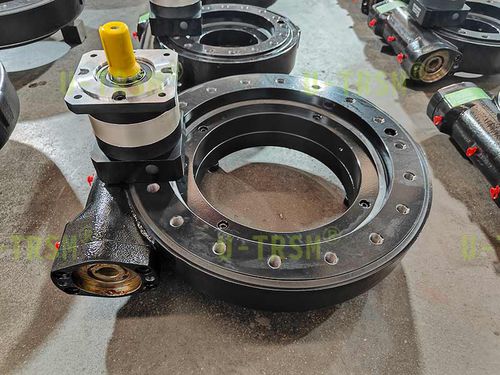

The precision 14inch slewing drive with matching planetary gearbox is used on heavy duty equipment, the characteristics of the application are that the speed is extremely low, requiring a large gear ratio, small output torque requirements and high precision. There is no space for installing the gearbox and the motor on the outside of the base and the turntable, and the motor and the gearbox can only be installed in the gap between the base and the turntable. Summarizing the customer’s usage requirements, the best choice is the precision worm gear slewing drive. Due to the output speed is particularly slow, the slewing drive needs to add a gearbox to obtain a larger total gear ratio. We have equipped a precision planetary gearbox for customer, and under the premise of minimal changes, the slewing drive and the planetary gearbox are cleverly adapted, so that the equipment components are standardized as much as possible and provide convenience for later maintenance and repair. Design is definitely not just about drawing a picture, but more about realizing the experience and ideas of the designers in it.
