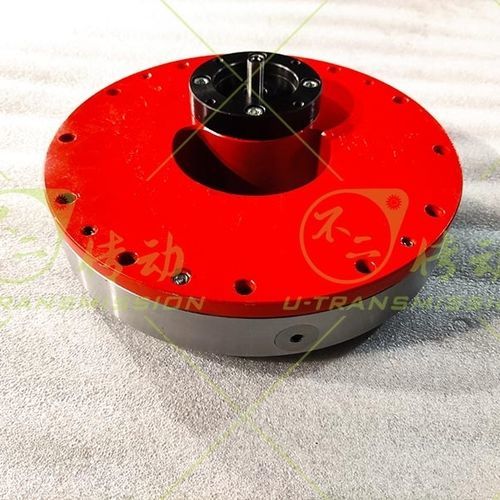

Slewing drive D226

internal gear spur gear slewing drive is used in automation equipment. Customers need very small load, low speed and very limited installation space. They hope that the slewing drive is as light as possible. According to customer requirements, Unique Transmission has designed internal gear spur gear slewing drive D226 for customers. It adopts small module gears. The pinion diameter is very small, which is not suitable for shaft hole. The connecting shaft is used for transmission,the slewing bearing adopts ultra-thin design. In order to reduce weight, the housing is made of 6061 duralumin. Due to the slewing bearing size is very small, at the same time has low height, the processing difficulty is relatively large, the gear tooth modulus is small, outer diameter is small, the process is difficult to operate. During the processing, Unique Transmission overcomes one problem after another, through team efforts, the assemble and inspection were finally successfully completed and made products that meet customer needs.
