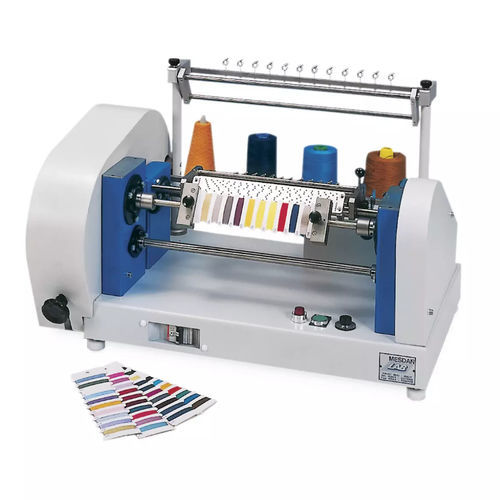

Mutliple yarn sample winding machine 171A

yarnautomaticfor sampling

Overview
Yarn sample winder designed for preparing samples from regular spun yarns. Compatible with any type of card up to 320 mm length and 95 mm width. Suitable for a wide range of yarn counts and for laboratory or production sample preparation.

Features

• Automatic forward winding movement
• Manual reverse winding movement
• Ability to wind up to 12 yarns simultaneously
• Presettable winding width
• Equipped with an adjustable yarn pre-tensioner

Technical specifications

• Suitable for: regular spun yarns
• Compatibility: any type of card
• Maximum card length: 320 mm
• Maximum card width: 95 mm
• Yarn count: suitable for any yarn count
• Winding movement: automatic forward; manual reverse
• Simultaneous winding: up to 12 yarns
• Winding width: pre-set capability
• Yarn pre-tensioner: adjustable
