Optical video microscope 250D

inspectionlaboratoryfor quality control

Product overview
Computerised video analyser for microscopic inspection and quantitative analysis of fibres, yarns, fabrics, knits, non-wovens and related mechanical parts. Designed for laboratory quality control, incoming material checks and R&D in textile and materials testing environments.

Equipment suitable to:

• perform rapid fineness analysis of single fibres;
• identify fibre types within blends and determine composition percentages;
• verify purchased material characteristics, analyse yarn structure and detect defects;
• measure yarn count (dtex/den) and round-section filament count;
• assess Lycra/elastic filament distribution in yarns and compactness of non-woven fabrics;
• measure section surface areas and perimeters;
• inspect mechanical parts such as needle points and spinnerets; reduce warp and weft density measurements to cm or inch;
• process, store and print measurements, and provide min/mean/max values, CV% and distribution graphs.

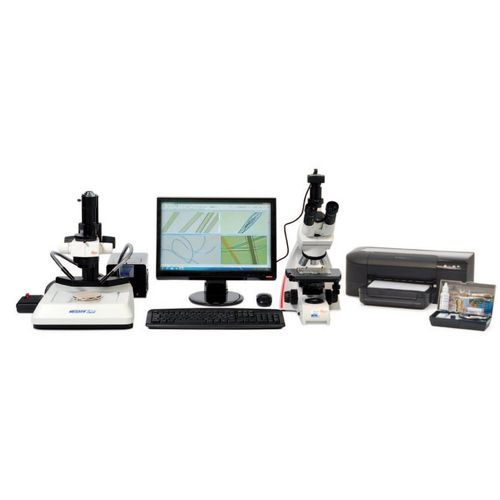

The system is composed of

• LEICA Biological Microscope: on-screen magnification from 195X to 2830X with micrometric slide movement and polarising illumination for fibre and yarn analysis.
• LEICA Stereo Microscope: on-screen magnification from 16X to 189X with illuminated base for fabric, yarn and mechanical part inspection.
• LED ring light illuminator for uniform lighting.
• PC complete with LCD monitor and photographic-quality printer.
• Professional digital colour camera, 1/2.3" sensor, 25.0 Mpixel, USB 3.0 for image acquisition.
• Software for image capture, measurement extraction, annotations on live and stored images, and statistical analysis.
• Fibre Microscope Kit (Code 250.325) for sample preparation and microscopic analysis.

Reference Standards
ISO 137, UNI EN 12751, UNI 5423, UNI ISO 1130, ASTM D629, ASTM D2130, ASTM D276, AATCC 20, IWTO 8, TWC TM24, NIKE (section H, fiber content testing requirements).

Technical specifications

• Biological microscope magnification on screen: 195X to 2830X.
• Stereo microscope magnification on screen: 16X to 189X; illuminated base for fabrics and mechanical parts.
• Digital camera: 1/2.3" sensor, 25.0 Mpixel, USB 3.0 interface.
• Measurement capabilities: single-fibre fineness; fibre identification in blends; composition percentage analysis; yarn count (dtex/den); section surface and perimeter measurement; non-woven compactness analysis; defect detection.
• Mechanical inspection: needle points, spinnerets, travellers, etc.
• Fabric analysis: warp and weft density convertible to cm or inch.
• Software: live-image measurement, annotation, storage, min/mean/max values, CV% and distribution graphs, statistical reporting.
• Illumination: LED ring light included.
• Delivered with PC, LCD monitor and photographic-quality printer; optional Fibre Microscope Kit (Code 250.325).
