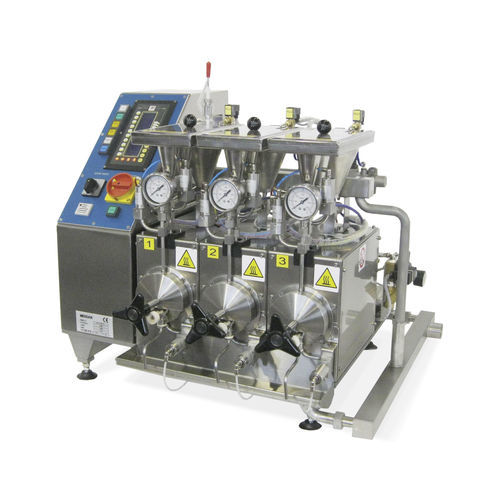

Continuous dyeing machine GIOTTO HT | 323T6
textilefor fabricsadjustable

Continuous dyeing machine - GIOTTO HT | 323T6 - Vandewiele - textile / for fabrics / adjustable
Continuous dyeing machine - GIOTTO HT | 323T6 - Vandewiele - textile / for fabrics / adjustable
Add to favorites
Compare this product

Characteristics

Type
continuous
Applications
textile, for fabrics
Other characteristics
adjustable

Description

Product overview
  • Fully automatic dyeing machine covering operations from pre-treatment to final wash-off.
  • Load/unload principle similar to bulk machines for efficient sample handling.
  • Designed to dye yarn skeins and fabrics made of any dyeable fibers and blends.


Main features
  • All process parameters are fully programmable, including Auto Dosing.
  • About 50 selectable dyeing programs with graphic display.
  • Basic configuration includes 3 automatic dosing tanks; option to add 2 additional dosing pumps per dye unit for full automation.
  • Up to 6 independent dyeing positions, selectable as H.T. (+135°C) or atmospheric (+98°C), or combined.
  • Available bath capacities: 300 cc, 600 cc, 1600 cc, 6000 cc; mixed capacities per instrument on request.
  • Capability to create processes and plan batches online similar to bulk machines.
  • Continuous programmable reduction clearance available (suitable for PES and its blends) to enable continuous dyeing of PES blends.
  • Liquor ratio range from 1:7 to 1:40 depending on fabric GSM.
  • High precision with excellent repeatability within a bath and reproducibility between baths (delta <0.4 CMC 2:1; RFT >95%).


GIOTTO HT 9000
  • Single-position variant with 9000 cc tank capacity.
  • Designed for combined use with laboratory inspection and handling instruments.
  • GIOTTO HT 9000 (H.T. +135°C) suitable for dyeing polyester fabrics and yarns and for final stripping of dyed polyester.
  • Maximum sample dry weight: 300 g.


Technical specifications
  • Type: fully automatic drum-type laboratory dyeing machine for yarn and fabric samples.
  • Load/unload: principle similar to bulk machines.
  • Dyeable materials: yarn skeins and fabrics of all dyeable fibers and blends.
  • Programmability: all parameters fully programmable; ~50 selectable programs with graphic display.
  • Dosing: basic model with 3 automatic dosing tanks; optional 2 additional dosing pumps per dye unit for full automation.
  • Dyeing positions: up to 6 independent positions; each selectable as H.T. (+135°C) and/or atmospheric (+98°C).
  • Bath capacities: 300 cc, 600 cc, 1600 cc, 6000 cc; configurable mixes on request; single-position 9000 cc variant available.
  • Liquor ratio: 1:7 to 1:40 (dependent on fabric GSM).
  • Reduction clearance: continuous programmable (suitable for PES and blends) to allow continuous dyeing of PES blends.
  • Performance: high precision, repeatability and reproducibility (delta <0.4 CMC 2:1; RFT >95%).
  • GIOTTO HT 9000 specifics: single-position 9000 cc tank; suitable for polyester dyeing and final stripping; max sample dry weight 300 g.
