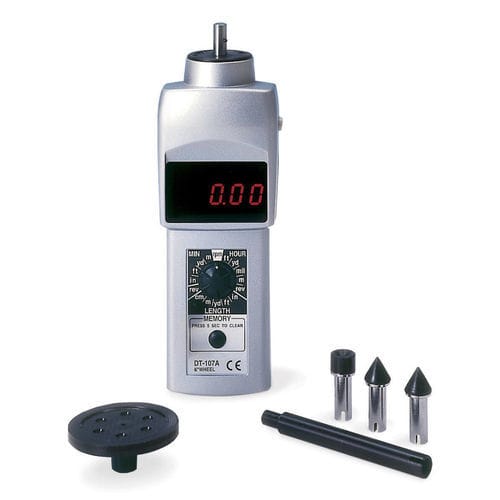

Contact tachometer 1810 series
opticalnon-contacthandheld

Add to favorites

Compare this product

Characteristics

Type

contact, optical, non-contact

Mounting

handheld

Display

electronic, digital

Rotational speed

Max.: 99,999 rpm
(628,312.25 rad.min-1)

Min.: 0.1 rpm
(0.63 rad.min-1)

Overview

Series of handheld and optical electronic tachometers for contact and non-contact measurement of revolutions, surface speed and linear length (e.g., belts, conveyor belts).
Available models: ELECTRONIC TACHOMETER 1810C, 1810G, 1810E, 1810H. Product sheets are available for each model.

ELECTRONIC TACHOMETER | 1810C

Hand-held tachometer for contact measurement of revolutions of engines or shafts and for surface speed and length (e.g., belts and conveyor belts).
Digital contact reading from 0.1 to 25,000 rpm and from 0.02 to 3,810 m/min.
Available measuring scales: revolutions per minute (rpm), revolutions per hour, yard/min, yard/hour, m/hour, feet and inches per min and per hour.
Selectable length units: cm, m, inches, feet and yards.
Storage capacity: 13 measurements including minimum and maximum values.
Equipped with a set of ferrules (accessories included).

ELECTRONIC TACHOMETER | 1810G

Contact reading tachometer.
Measuring range: from 1 to 25,000 rpm and from 0.1 to 3,810 m/min.
Accuracy: ±1 rpm (from 1 to 599 rpm) and ±0.01% of reading (from 600 to 25,000 rpm).
Selectable length units: meters, inches, feet, and yards.
Storage capacity: 14 readings, including minimum and maximum values.
Complete with accessories (a set of ferrules included).

ELECTRONIC TACHOMETER | 1810E

Optical model for contact and non-contact measurements.
Measuring range: non-contact up to 99,999 rpm with ±1 revolution accuracy; contact up to 25,000 rpm.
Measuring distance (non-contact): up to 2 m maximum.
Storage capacity: 13 measurements, minimum and maximum values included.
Equipped with a set of ferrules (accessories included).

ELECTRONIC TACHOMETER | 1810H

Optical model for contact and non-contact measurements.
Measuring range: up to 99,999 rpm with ±1 rpm accuracy (non-contact) and up to 25,000 rpm with ±2 rpm accuracy (contact).
Measuring distance (non-contact): up to 2 m maximum.
Storage capacity: 14 readings, including minimum and maximum values.
Equipped with a set of ferrules (accessories included).

Technical specifications

Model family: 1810 (models C, G, E, H).
Measurement modes: contact and non-contact (optical) depending on model.
RPM measuring ranges: from 0.1 rpm (model dependent) up to 99,999 rpm (optical, model dependent); contact mode typically up to 25,000 rpm.
Surface speed measuring range: up to approx. 3,810 m/min (model dependent).
Length units selectable: cm, m, inches, feet, yards.
Measuring distance (optical non-contact): up to 2 m (models E and H).
Storage capacity: 13 or 14 measurements depending on model; includes minimum and maximum values.
Accuracy: ±1 rpm (low-range), ±0.01% of reading at higher ranges for certain models; contact accuracy varies by model (see model details).
Accessories: set of ferrules supplied with each instrument.
Form factor: handheld.
