Rub resistance abrasion tester 2563

Overview

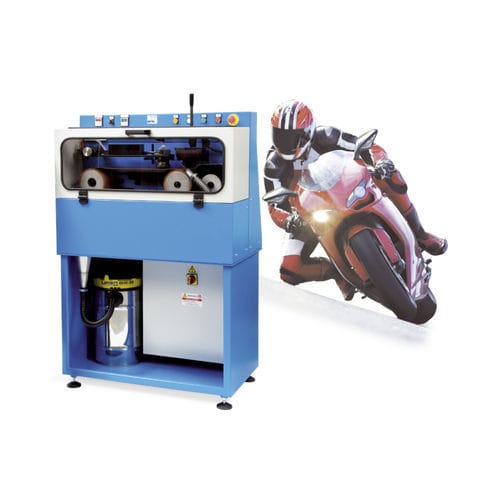

The IMPACT ABRASION LAB 2563 is a laboratory tester designed to evaluate impact-related abrasion resistance of protective garments and accessories used by motorcyclists and similar applications. It measures the resistance of materials used in one-piece and two-piece suits, gloves and local protectors (wrists, knees, elbows, hands).

Supplied complete with

• Timer (display in seconds)
• Abrasion meter counter
• Device to apply 49 N pressure onto specimens
• Waste suction device for debris removal
• Operator safety features

Reference standards

• UNI EN 13595-2
• UNI EN 13594
• UNI EN 14120

Product sheets
Product sheet available for this model.

Technical specifications

• Intended use: evaluate quality of protective suits and resistance to abrasion of wrist, knee, elbow and hand protections
• Timer provided (display in seconds)
• Abrasion meter counter included
• Applied pressure device: 49 N
• Waste suction system for debris removal
• Built-in operator safety features
• Compliance with standards: UNI EN 13595-2, UNI EN 13594, UNI EN 14120
