Solids analyzer 3280C

dustfor the textile industryprocess

Overview

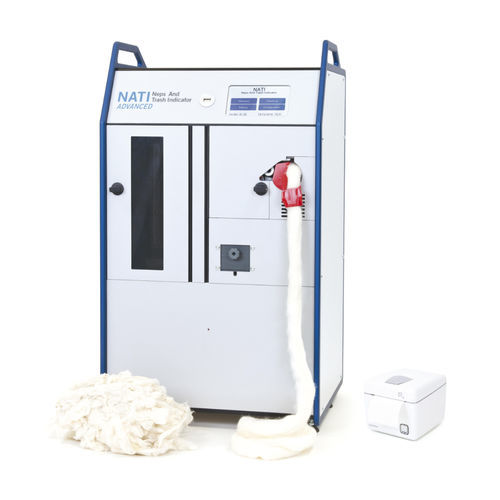

NATI Advanced is a transportable optoelectronic instrument for automatic measurement and classification of Neps, Seed Coat Neps, Trash and Dust in large-size sliver samples (samples up to 6 m; approximately 30 g depending on sliver count). It is suitable for cotton, synthetic and blended slivers as well as raw cotton material and is designed for fast in-plant quality checks and process control.

Measured parameters and size classes

• Neps / Seed Coat Neps: >0.5 mm ; >0.7 mm ; >1.0 mm
• Trash / Dust: >0.15 mm ; >0.25 mm ; >0.50 mm

Performance
The system uses an optoelectronic detection method to automatically detect and classify Neps, Seed Coat Neps, Trash and Dust. Analysis is rapid: typically less than 2 minutes to test 2 g of sliver, enabling daily control of carding departments and improved scheduling of maintenance.

Integration
NATI Advanced can be linked to CONTEST-F2 to complete raw cotton profiling. When connected, both units share the same graphical user interface and consolidated printout for unified fiber testing data.

• Neps count/g [>0.5 mm]
• Neps count/g [>0.7 mm]
• Seed Coat Neps count/g [>1.0 mm]
• Total Neps count/g [>0.5 mm]
• Dust count/g [>0.15 mm]
• Trash count/g [>0.25 mm]

Accessories

• Mini thermal printer (Code 3280A.136) — Optional
• Trolley (Code 3280.900) — Optional
• Electronic high precision balance (Code 165.756) — Optional

Product sheets
Product sheet available for NATI Advanced 3280C (PDF product sheet).

Technical specifications

• Model: NATI Advanced
• Manufacturer / Brand: Mesdan
• Instrument type: Optoelectronic analyzer for Neps, Seed Coat Neps, Trash and Dust in slivers
• Suitable for: cotton, synthetic, blended slivers and raw cotton material
• Maximum sample length: up to 6 m (approx. 30 g, depending on sliver count)
• Measured size classes (Neps / Seed Coat): >0.5 mm ; >0.7 mm ; >1.0 mm
• Measured size classes (Trash / Dust): >0.15 mm ; >0.25 mm ; >0.50 mm
• Test speed: less than 2 minutes to analyse 2 g of sliver (typical)
• Outputs: counts per gram for Neps (various sizes), Seed Coat Neps, Total Neps, Dust and Trash
• Integration: Linkable to CONTEST-F2 (shared GUI and printout)
• Optional accessories: mini thermal printer (3280A.136), trolley (3280.900), electronic high precision balance (165.756)
• Documentation: product sheet available (PDF)
