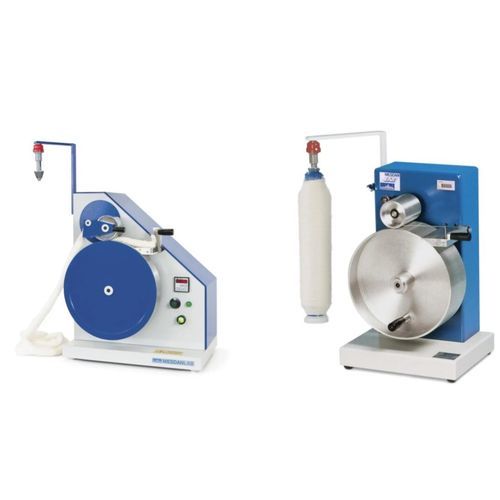

Yarn reel 254A-B

hand crankmotorizedfor wraps

Overview
Essential equipment to prepare sliver or roving samples of preset length for further count or CLSP measurement.

Electronic reels | 254A-B

• Available drum circumference:
  • 1 meter (Code 254A)
  • 1 yard (Code 254B)
• Adjustable drum speed: from 0 to 100 m/min with ±1 cm accuracy.
• Automatic stop at preset length.
• Designed to prevent any possible drawing of the fiber sample.
• Ideal to eliminate the human error and reduce the CV% in the count analysis.
• Equipped with digital counter, bobbin holder and cutter.

Hand operated reels | 159A-B

• Available drum circumference:
  • 1 meter (Code 159A)
  • 1 yard (Code 159B)
• Equipped with digital counter, bobbin holder and cutter.

Technical data
Type — Reel circumference — Code
Electronic — 1 m — 254A
Electronic — 1 yd — 254B
Hand operated — 1 m — 159A
Hand operated — 1 yd — 159B

Included accessories / equipment

• Digital counter
• Bobbin holder
• Cutter

Technical specifications

• Drum circumference options: 1 meter and 1 yard
• Electronic reel speed range: 0–100 m/min
• Length accuracy: ±1 cm
• Automatic stop at preset length
• Designed to prevent drawing of the fiber sample during wrapping
• Reduces human error and CV% in count analysis
• Equipped with digital counter, bobbin holder and cutter
• Available in electronic and hand-operated versions
