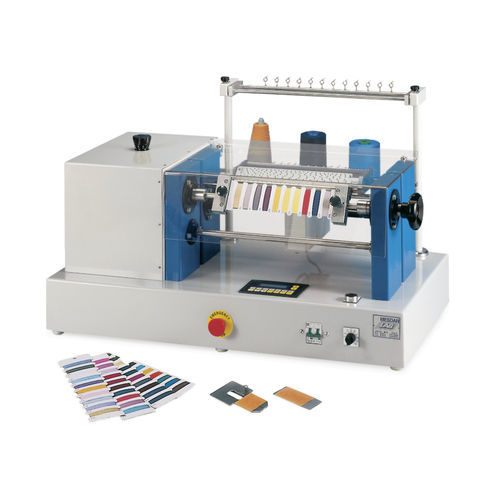

Mutliple yarn sample winding machine 171B

yarnautomaticfor sampling

Product overview
Special high-accuracy yarn sample winder with micrometric pitch (winding density) adjustment, designed for consistent production of coloured sample cards with controlled spacing and repeatability.

Applications
Particularly suited for high-volume production of coloured sample cards from medium-fine and filament yarns, including sewing threads and industrial filament yarns.

Key features

• Fully automatic forward and reverse winding movement, programmable via built-in PLC
• Micrometric pitch adjustment for precise control of winding density
• Adjustable spacing between windings and automatic stop function
• Maximum winding speed: 1000 turns/min
• Simultaneous winding capacity: up to 12 yarns
• Compatible with sample cards up to 320 mm length and 95 mm width

Technical specifications

• Model: 171B
• Micrometric pitch (winding density) adjustment
• Winding movement: fully automatic forward and reverse, PLC-programmable
• Adjustable spacing and automatic stop
• Maximum winding speed: 1000 turns/min
• Simultaneous capacity: up to 12 yarns
• Card compatibility: max. 320 mm length, max. 95 mm width
• Suitable yarn types: medium-fine yarns (e.g., sewing threads) and filament yarns
