Discontinuous dyeing machine LODO HT | 323P6

textilefor fabricsstaple fiber

Overview

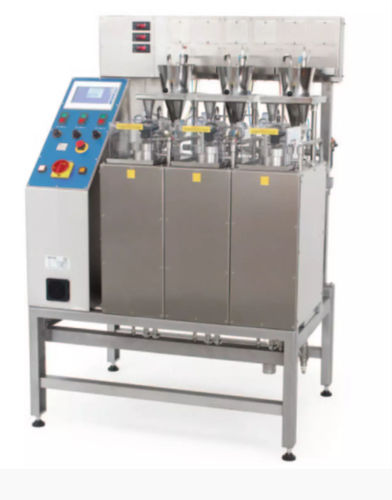

Laboratory dyeing machine with 3 independent dyeing units suitable for both atmospheric dyeing (up to +98°C) and high-temperature dyeing (up to +135°C). Designed for dyeing small yarn cones, bulk fibres, fabrics wound on beams and yarn skeins. Modular architecture enables configurations from manual to fully automatic systems to improve process repeatability and support Right First Time (RFT).

Main features
Available in different configurations (from manual to fully automatic). Dyeing is performed on static samples with a circulating dye bath flow, alternating inside-outside and outside-inside thanks to the reversible circulation pump supplied with the unit. Each dyeing unit can be fitted with an optional automatic dosing system consisting of 1 main tank and 3 auxiliary tanks. Optional accessories (for example EXTRA PUMP D-4 and D-5 dosing kits) provide full automation and high dosing accuracy, reducing operator intervention and supporting RFT.

Technical features

• Up to 6 independent dyeing positions available on demand.
• Models with 1000 cc bath capacity available on demand.
• Programmable built-in PLC microprocessor with touchscreen display.
• Automatic dosing of dye recipe, alkali and auxiliary products.
• Automatic continuous washing.
• Automatic drain of the dyeing bath.
• Reversible circulation pump.
• Automatic indirect water cooling system.
• Automatic soaping.

Product sheets
Product sheet available for the LODO HT 323.P6 (product sheet provided by the manufacturer).

Technical specifications

• 3 independent dyeing units (standard configuration shown).
• Suitable for atmospheric dyeing up to +98°C and high-temperature dyeing up to +135°C.
• Modular design to increase automation and repeatability.
• Optional automatic dosing system per dyeing unit: 1 main tank + 3 auxiliary tanks.
• Optional accessories for enhanced automation (e.g. EXTRA PUMP D-4 and D-5 dosing kits).
• Reversible circulation pump enabling inside-outside and outside-inside circulating dye bath flow.
• Programmable PLC with touchscreen for process control.
• Optional expansion up to 6 independent dyeing positions and 1000 cc bath capacity variants.
• Automatic continuous washing, bath drain, indirect water cooling and automatic soaping functions.
