Thermostatic test chamber 1722climatichumiditytemperature
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic, climatic
- Controlled parameter
- humidity, temperature
- Test type
- psychrometrics, temperature stability
- Product applications
- for materials testing
- Application domain
- laboratory
- Number of doors
- 1-door
- Options and accessories
- with temperature and climatic control, with window, with constant temperature and humidity control
- Capacity
Max.: 250 l
(66.04 gal)Min.: 250 l
(66.04 gal)- Temperature
Max.: 80 °C
(176 °F)Min.: 8 °C
(46 °F)
Description
Description

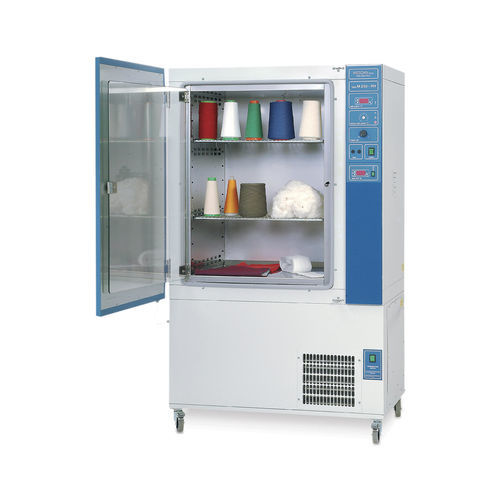

Laboratory conditioning chamber for textiles (raw fibers, yarns on spools and hanks, fabrics and finished garments) providing stable temperature and relative humidity for testing and preconditioning in accordance with ISO and ASTM standards. Fitted with an internal glass inspection door, two shelves and digital display for temperature and humidity. Automatic mains water inlet to the humidification tank.
Key features
Reference standards
UNI EN ISO 139; ASTM D1776; UNI EN 1149
Accessories
Technical specifications
Laboratory conditioning chamber for textiles (raw fibers, yarns on spools and hanks, fabrics and finished garments) providing stable temperature and relative humidity for testing and preconditioning in accordance with ISO and ASTM standards. Fitted with an internal glass inspection door, two shelves and digital display for temperature and humidity. Automatic mains water inlet to the humidification tank.
Key features
- Inner capacity: 250 litres
- Adjustable temperature range: +8°C to +80°C; precision ±0.5°C (under ambient conditions +18°C to +35°C and 30%–70% RH)
- Relative humidity range: 20% RH to 90% RH; accuracy ±2%
- Internal glass inspection door
- Two shelves (one optional additional steel shelf)
- Digital display of temperature and humidity
- Automatic mains water inlet to humidification tank (external tank optional)
Reference standards
UNI EN ISO 139; ASTM D1776; UNI EN 1149
Accessories
- External water tank (Code 1722.10) — Optional
- Additional steel shelf (Code 251.250) — Optional
Technical specifications
- Model: CLIMATEST 1722
- Inner capacity: 250 litres
- Temperature range: +8°C to +80°C; precision ±0.5°C (under specified ambient conditions)
- Ambient conditions for stated precision: +18°C to +35°C and 30%–70% RH
- Relative humidity range: 20% RH to 90% RH; accuracy ±2%
- Display: digital reading for temperature and humidity
- Door: internal glass inspection door
- Shelves: two (additional steel shelf available as optional accessory)
- Water supply: automatic mains inlet (external water tank optional)
- Standards: UNI EN ISO 139; ASTM D1776; UNI EN 1149
