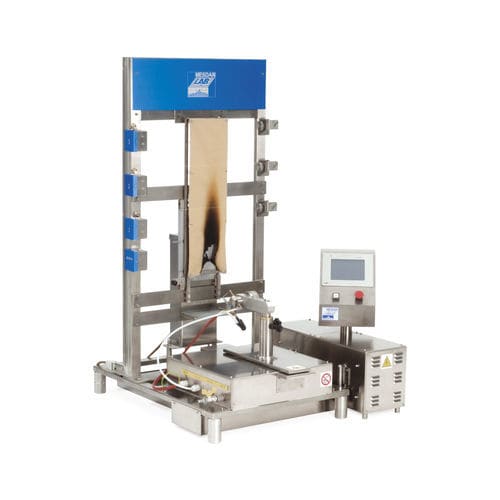

Fire reaction testing machine 3392E

flammabilityfully-automaticPLC-controlled

Overview
Instrument to determine the flammability resistance of textiles and the flame propagation rate on vertically oriented textile specimens. Fully automatic bench instrument suitable for laboratory quality control and compliance testing in accordance with ISO/EN standards.

Suitable to test

• Protective fabrics
• Technical textiles
• Clothing and furnishing fabrics

Usage and features
Can also be used for testing toys and for natural and synthetic leathers. The instrument is fully automatic and equipped with a PLC that controls and records burner movement, burner-to-sample distance and flame propagation time between set distances. Data can be exported via serial port to a PC for storage and printing.

Accessories

• Radiator (Code 3392E.40): For testing flammability under radiator heat exposure as required by EN 13772. Optional.

Reference Standards

• UNI EN ISO 15025
• UNI EN ISO 6940
• UNI EN ISO 6941
• UNI EN 13772
• UNI EN 407
• UNI EN 1101
• UNI EN 1102
• UNI EN 1103
• UNI EN ISO 14116
• UNI EN ISO 14878
• UNI EN 1624
• UNI EN 1625

Technical specifications

• Product type: Laboratory instrument for textile flammability testing
• Model identifier: 3392E
• Operation: Fully automatic with PLC control and recording
• Functions recorded: burner movement, burner-to-sample distance, flame propagation time
• Data output: serial port for PC connection, data storage and printing
• Applicable specimen types: protective fabrics, technical textiles, clothing and furnishing fabrics, toys, natural and synthetic leather
• Optional accessory: Radiator for heat exposure testing (code 3392E.40)
• Compliance: Designed for testing according to listed UNI/EN/ISO standards
