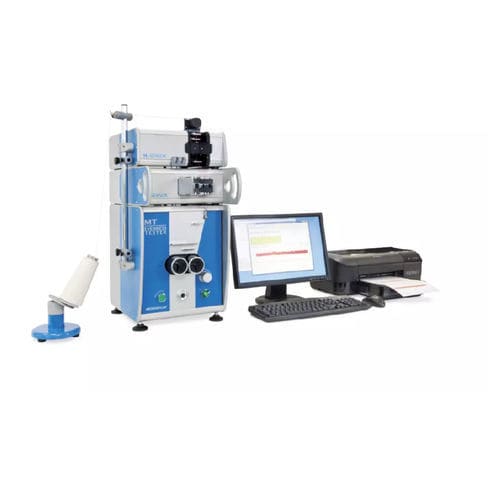

Performance tester 2341

capacitancemasssensor

Product overview
For the evenness control of slivers, rovings and yarns made of both natural and synthetic/manmade fibers.

Measured / analysed data

• Mass variation diagram
• 160 channels spectrograph to analyse the wave length spectrogram
• CV% and U% of mass variations
• AVE% (relative yarn count)
• I.P.I. with indication of thin places, thick places and neps
• D.R.% (deviation rate %)
• C.V.% (L) referred to 4 lengths
• Diagram of mass variation both in “inert” and “1/2 inert” way
• Index of regularity (I)

Notes
The instrument is supplied with a personal computer with Windows OS.

Accessories

• 24-position Auto Cop Changer (A.C.C.) (Code 299A) — Optional
• H-Sensor, hairiness sensor to evaluate the yarn hairiness (Code 2342) — Optional
• Yarn creel up to 24 spindles (Code 200) — Optional

Technical specifications

• Measurement sensor type: high quality capacitive sensor
• Count range: from 35 g/m (sliver) to Ne 150 max (yarn); beyond this range it is recommended to evaluate from time to time
• Sample speed: from 8 to 400 m/min
• 160 channels spectrograph
• Displays and prints mass variation diagrams and multiple statistical indices (CV%, U%, AVE%, I.P.I., D.R.%, C.V.% referred to 4 lengths, Index of regularity)
• Capable of identifying thin places, thick places and neps
• Delivered with personal computer running Windows OS
