Solids analyzer CONTEST-F2 | 3302Ffor quality controllaboratoryfor the textile industry
Add to favorites
Compare this product
Characteristics
- Measured entity
- solids
- Application domain
- for quality control, laboratory, for the textile industry
- Measured value
- residual contamination, color, fiber determination, moisture
- Mode of use
- automatic, automated
- Other characteristics
- multi-parameter
Description
Product overview
Modules
Example of obtainable data
Technical specifications

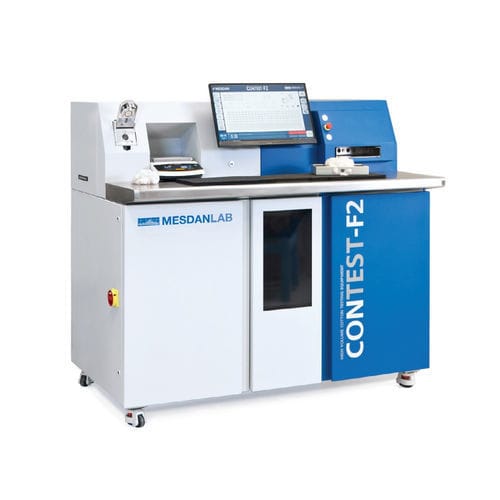

- CONTEST-F2 is an automated laboratory analyzer for comprehensive measurement and classing of cotton bale fiber properties, including length, strength, elongation, micronaire, maturity, colour grade and trash content.
- Suitable for both raw cotton and cleaned lint; the system provides repeatable results independent of operator influence.
- Fully automatic operation with an intuitive user interface; classing module calibrated with international standard materials. Designed, engineered and manufactured in Italy.
Modules
- Module 1: measures length and strength-related parameters for raw cotton — upper half mean length (UHML), mean length, uniformity index, short fiber index, strength, elongation, moisture and spinning consistency index.
- Module 2: evaluates colour and appearance — colour grade, Rd, +b, trash count, trash area and leaf grade for raw cotton.
- Module 3: characterizes fineness and maturity — micronaire, maturity index for raw cotton; when testing fully cleaned lint, also provides lint surface area (mike), maturity ratio, percentage of mature fibers, fineness and standard fineness.
Example of obtainable data
- Comprehensive dataset for quality control and classing: length distribution metrics, strength and elongation values, fineness and maturity parameters, colourimetric values, trash count and area, moisture and foreign matter metrics.
Technical specifications
- Measured length metrics: UHML, mean length, uniformity index, short fiber index.
- Strength metrics: strength, elongation, spinning consistency index.
- Fineness and maturity: micronaire, maturity index, fineness, standard fineness, percentage of mature fibres, maturity ratio.
- Lint-specific outputs: lint surface area (mike) when testing cleaned lint.
- Colour and appearance: colour grade, Rd, +b.
- Trash and contaminants: trash count, trash area, leaf grade.
- Moisture measurement integrated.
- Fully automated operation; results independent of operator influence.
- Classing module calibrated with international standard materials.
- Suitable for raw cotton and lint testing.
- Designed, engineered and manufactured in Italy.
