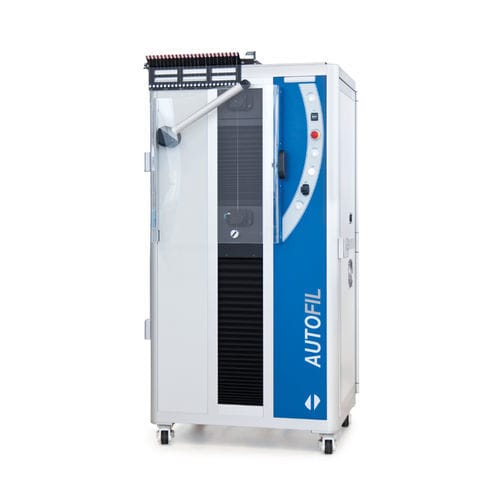

Tension force tester AUTOFIL | 2518

tensile strengthpullload cell

Description
AUTOFIL is a fully automatic 24-position yarn strength tester for tensile testing of yarns, threads, hanks and fabrics. Supplied with automatic yarn clamps and an integrated 24-position bobbin changer, it can also operate in semi-automatic mode. The system includes a built-in PC and user-friendly software with pre-set testing routines; users can create and save custom routines. The tester supports a maximum force of 1.5 kN and is designed for laboratory and production quality control.

Accessories / Available options

• Interchangeable load cells (wide range of capacities)
• Pneumatic and mechanical clamps for hanks (LEA), fabrics and threads; fabric jaws (rubber or metal flat)
• Clamps and jaws for seam slippage/Grab tests (various sizes)
• Contact Line for stretch/recovery tests
• Automatic clamps for high-tenacity yarns (sewing, carpet, industrial) up to ~300 N (Code 2518.240)
• Special kit for testing spandex (on request)
• Foot switch (Code 2512E.618)
• Trolley creel 24 positions (Code 2518.201) - highly recommended
• Pneumatic clamps for medium-light fabrics, 100 mm wide (jaws not included) (Code 2518.222)
• LEA clamps for hanks (manual mode) (Code 2518.220)
• Contact Line for stretch / recovery / etc.

Technical data (load cells)

• 20 N | Effective capacity 10 N | Load accuracy 0.4 cN | Resolution 0.0002 cN | Code 2518.580
• 100 N | Effective capacity 60 N | Load accuracy 2 cN | Resolution 0.001 cN | Code 2518.581
• 500 N | Effective capacity 340 N | Load accuracy 10 cN | Resolution 0.005 cN | Code 2518.583
• 1000 N | Effective capacity 690 N | Load accuracy 20 cN | Resolution 0.01 cN | Code 2518.584
• 5000 N | Effective capacity 3490 N* | Load accuracy 100 cN | Resolution 0.05 cN | Code 2518.585

Note: *Max load capacity limited to 1500 N

Additional product notes
Product can be supplied with ISO9001 calibration report. A dedicated product sheet and full specifications are available for download.
