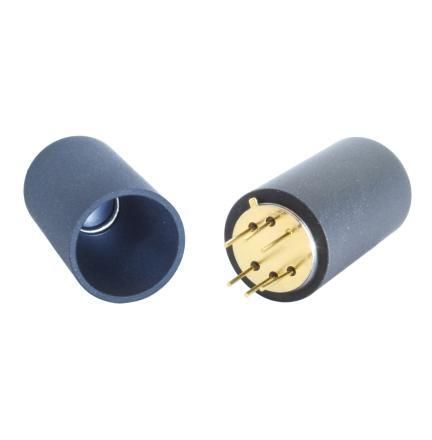

Thermopile infrared sensor TPiS 1T 1386 L5.5 H

passivefor safety light barriersfor portable infrared thermometer

Product Overview
The Excelitas TPiS 1T 1386 L5.5 H is a thermopile sensor with integrated signal processing designed for medical-grade temperature measurement. As part of the CaliPile® series, it includes factory calibration data stored in on-board EEPROM. Housed in an isothermal TO-39 package with a confined 5° field of view, the device adapts rapidly to ambient temperature changes.

Additional Details
The TPiS 1T 1386 L5.5 H includes a lens hood to reduce stray light and stabilize thermal response in harsh conditions, enabling accurate measurements without re-calibration after integration. With a high-sensitivity thermopile detector and intelligent data processing, the sensor supports remote object temperature measurement and more. Configured via the I²C interface, it offers a hardware-configurable address and an interrupt output to monitor fast temperature changes and over-temperature events. A fast over-temperature security switch provides additional protection while temperature computation uses the calibration parameters on the host.

Features

• Medical-grade factory calibration
• Isothermal TO-39 package
• High-sensitivity thermopile with 5° field of view
• Integrated 50 µW low-power signal processing
• I²C interface with hardware-configurable address
• Calibration data for ambient and object temperature sensing
• Interrupt output for presence, motion and over-temperature detection

Typical Applications

• Remote temperature measurement
• Fast remote over-temperature protection
• Mid-field human presence sensing
• Far-field human motion detection
• Passive light barrier for people counting

Technical specifications

• Operating voltage: 2.6–3.6 V
• Sensitivity S40: 60 counts/K
• Noise: 8 counts/K
• Time constant: 30 ms
• Housing with optical window: TO-39
• Lens hood included (for stray light reduction)
• Field of view: 5°
• Accuracy: < 0.3 K
• Factory calibration data stored in EEPROM
• Integrated 50 µW low-power signal processing
• I²C interface with hardware-configurable address and interrupt output
• Fast over-temperature security switch
