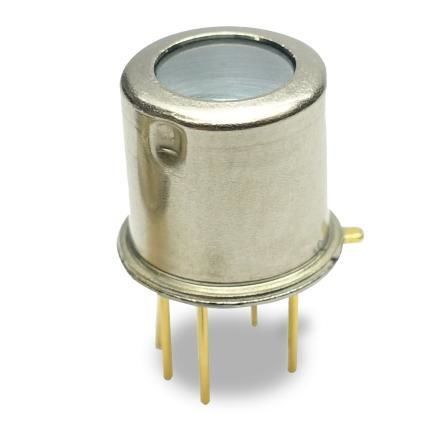

Passive infrared sensor CaliPile® TPiS 1T 1086 L5.5

thermopilefor safety light barriers

Product Overview
The first and only multi-function Thermopile Sensor of its kind, the CaliPile TPiS 1T 1086 L5.5 provides motion detection, presence monitoring and temperature measurement from a single, robust TO sensor package. Featuring a thermopile detector, onboard signal processing and integral lens options, the TPiS 1T 1086 L5.5 is suited for extended-range, multi-function IR sensing.

Details
Continuing the innovation in sensor design and digitization, the CaliPile delivers multi-function sensing based on thermopile technology. Equipped with a high-sensitivity thermopile detector, onboard processing electronics and a focusing lens for a narrow field-of-view, the TPiS 1T 1086 L5.5 is the TO-housing version of the CaliPile IR Sensor Series. The sensor is calibrated for temperature measurement up to 350°C; higher ranges are optionally available. An interrupt function can be configured to trigger when a set level is exceeded.

Features

• ISO thermal TO-39 package
• High-sensitivity thermopile with 5° field-of-view
• Integrated 50 µW low-power signal processing
• I2C interface with hardware-configurable address
• Calibration data for ambient and object temperature sensing
• Interrupt function for presence, motion, over-temperature and more

Applications

• Optimal for remote temperature measurement
• Fast remote over-temperature protection
• Mid-field human presence sensing
• Far-field human motion detection
• Passive light-barrier for people counting

Caractéristiques / Spécifications techniques

• Operation Voltage: 2.6 - 3.6 V
• Sensitivity S40: 30 Counts/K
• Noise: 8 Counts/K
• Time Constant: 15 ms
• Housing with Optical Window: TO-5
• Field-of-view: 5°
