Thermopile infrared sensor TPiS 1T 1256 L5.5 DigiPile™

Product Overview

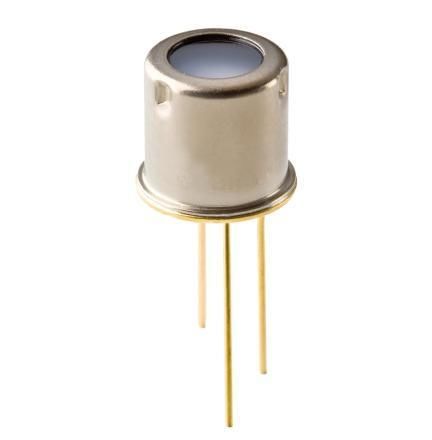

The Excelitas TPiS 1T 1256 L5.5 DigiPile sensor integrates a thermopile sensing element with an internal ADC for amplification and digital conversion, packaged in a TO-5 style housing with an integrated lens.

Details
In line with Excelitas' focus on innovation and digitization, the TPiS 1T 1256 L5.5 DigiPile provides a thermopile with a digital 17-bit output and benefits from patented ISOthermal performance. The digital data stream includes the thermopile signal followed by a measurement from an internal temperature reference diode, reducing susceptibility to electrical disturbance and simplifying system integration.

Features

• Digital output sensor
• 17-bit Tobj output (direct link)
• 14-bit Tamb output (direct link)
• Operating voltage down to 2.4 V
• Low current consumption
• Lens optics
• Isothermal housing

Typical Applications

• Non-contact temperature measurements
• Thermometry

Specifications / Technical data

• Operating voltage: 2.4–3.6 V
• Sensitivity S100: 85 Counts/K
• Noise: 8 Counts/K
• Time constant: 45 ms
• Housing with optical window: TO-5
• Field of view: 5°
