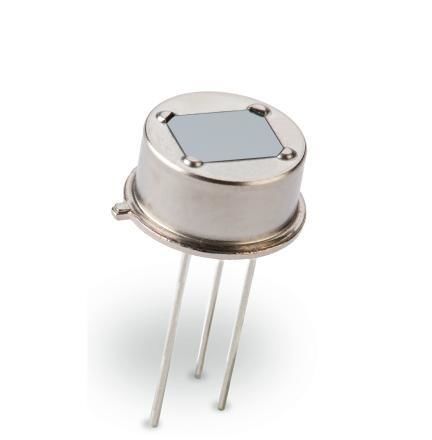

Pyroelectric infrared sensor PYS 3198

non-dispersivepassive

Product overview
Excelitas single-element pyrodetectors combine a sensing element with an optical window, making them well suited for gas measurement and monitoring. The PYS 3198 TC GX (replacement for LHi 807) is a single-channel, parallel-format temperature-compensated pyroelectric detector based on lithium-tantalate (Li-Ta), optimized for NDIR gas sensing.

Design details
The PYS 3198 TC design places a single sensing element at the center of the detector. Thermal compensation is achieved by a second element, blinded from radiation and connected in parallel. The metal TO-5 housing includes an optical window; for gas measurement the window typically functions as a narrow-band filter matched to target gas absorption. Multiple spectral-range options and configurations are available.

Key features

• G2 narrow-band filter
• Single-channel PIR (pyro) detector
• High-responsivity Li-Ta sensing element
• 135° field-of-view (horizontal) / 120° (vertical)
• TO-5 metal housing for improved EMI immunity

Applications

• Non-dispersive infrared (NDIR) gas sensing
• CO2 measurement channel

Technical specifications

• Responsivity: 3.5 kV/W (typical)
• Noise: 15 µVpp (typical) / 50 µVpp (max)
• Operating voltage: 2.0–10 V
• Housing with optical window: TO-5; various spectral ranges available
• Field-of-View (H/V): 135° / 120°
