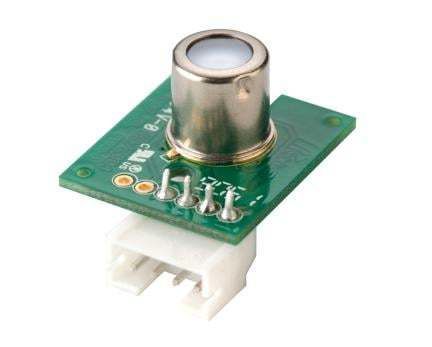

Thermopile infrared sensor TPiM 1T series

Overview
TPMI Sensor Modules are thermopile sensors and detectors mounted on compact PCBs with connectors for straightforward plug-and-play integration. Modules include on-board electronics for amplification and signal conversion and are offered calibrated for direct use in temperature-measurement and gas-sensing applications.

Products in this category

• TPiM 1T 0134, TPiM 1T 0234 Thermopile Modules - Calibrated: TPMI Sensor Module on a PCB with connector for easy plug-and-play. The sensor includes a sensing chip connected to an internal circuit which provides amplification and calculation of signals into a temperature-related output.
• TPiM 1T 0136 L5.5 Thermopile Module - Calibrated with lens: TPMI Sensor Module featuring the TPMI thermopile sensor on a PCB with connector for plug-and-play integration. The sensor chip is connected to an internal circuit that amplifies and converts signals into a temperature-related output. This variant includes a lens (L5.5) for optical modification.
• TPM 1T 0134 M Thermopile Module - Calibrated with Mirror: TPMI Sensor Module on a PCB with connector for easy plug-and-play. The sensor includes a sensing chip connected to an internal circuit which provides amplification and calculation of signals into a temperature-related output. This variant includes a mirror (M) for optical modification.

Characteristics / technical specifications

• Form factor: Thermopile sensor or detector mounted on a small PCB with connector for plug-and-play integration.
• Sensor element: Thermopile sensing chip.
• On-board electronics: Internal circuit providing signal amplification and conversion into temperature-related output.
• Calibration: Modules available calibrated for direct measurement use.
• Variants: Calibrated; calibrated with lens (e.g., L5.5); calibrated with mirror (M).
• Features: TPMI modules provide gas algorithm and calibration solutions tailored to temperature-measuring applications.
• Typical applications: Industrial temperature measurement, gas-sensing solutions, OEM integration in measurement devices.
