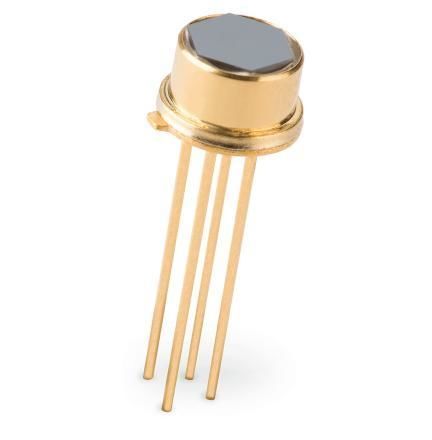

Thermopile infrared sensor TPiD 1T 0122B

for portable infrared thermometer

Product Overview
The Excelitas TPiD 1T 0122B and TPiD 1T 0222B thermopile detectors feature an ISOthermal housing design paired with a sensitive chip and a small optical window. Optimized for thermometry—particularly ear (tympanic) thermometry—these devices deliver improved thermopile performance under thermal shock conditions. The range includes the cost-effective TPiD 1T 0122B and higher-signal variants with larger or higher-sensitivity elements. Physical dimensions match TO-46 sensor housings and include a dedicated aperture. All types include an internal thermistor for thermopile temperature compensation to improve measurement accuracy.

Applications
Best suited for ear (tympanic) thermometry and general thermometry applications where fast response and robustness to thermal shock are required.

Features

• TO-46 ISOthermal metal housing
• Internal thermistor for temperature compensation
• High signal-to-noise ratio

Field of View / Optical
Field of View: 90° (see product Field of View chart image for details).

Notes
Physical housing matches TO-46 sensor footprint and includes a special aperture optimized for thermometry.

Technical specifications

• Responsivity: 92 V/W
• Sensitivity S100: 58 µV/K
• Noise: 42 nV/√Hz
• Time Constant: 15 ms
• Housing with optical window: TO-46
• Field of View: 90°
