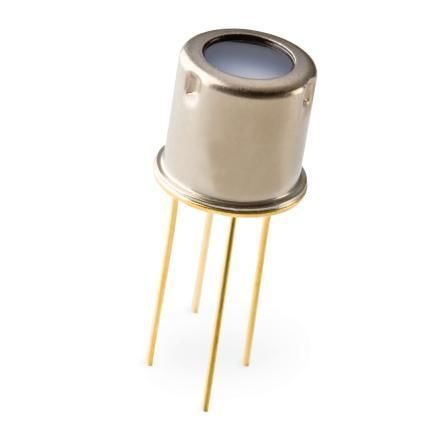

Thermopile infrared sensor TPiD 1T 0226 L5.5

Product description
The Excelitas TPiD 1T 0226 L5.5 thermopile detector with integrated optics includes an internal lens that focuses thermal radiation onto the sensitive chip to improve signal collection. The device incorporates Excelitas' patented ISOthermal performance feature and an internal thermistor for temperature reference and thermopile temperature compensation.

Features

• Patented ISOthermal performance
• TO-5 metal housing (long version)
• Internal thermistor for temperature compensation
• Integrated optics (built-in/internal lens)

Applications

• Non-contact temperature measurement
• Pyrometry

Specification table
Responsivity: 45 V/W
Sensitivity S100: 27 µV/K
Noise: 35 nV/√Hz
Time Constant: 22 ms
Housing with integrated lens: long version of TO-5
Field of View: 7°

Technical specifications

• Responsivity: 45 V/W
• Sensitivity S100: 27 µV/K
• Noise: 35 nV/√Hz
• Time constant: 22 ms
• Field of view: 7° (narrow FOV due to integrated lens)
• Housing: TO-5 metal housing, long version with integrated lens
• Integrated optics: built-in internal lens to focus thermal radiation
• Temperature compensation: internal thermistor included as temperature reference
• Patented Excelitas ISOthermal performance feature
