Pyro-electric motion sensor PYD 1588

high-sensitivity

Product overview

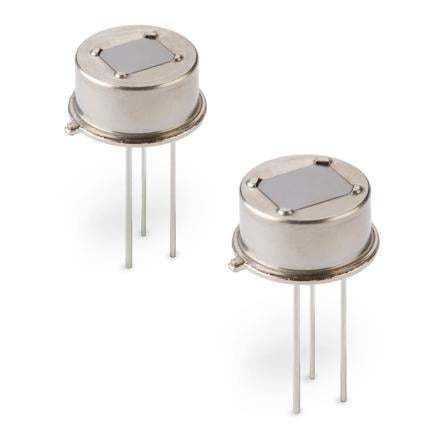

With a mere 1.8 V power requirement, Excelitas offers the first low-power enhanced DigiPyro® series. The PYD 1588 and PYD 1598 are fully integrated dual-element pyroelectric digital motion detectors available with two field-of-view options. These DigiPyros deliver very low current consumption for extended remote motion detection in battery-powered devices and support wake-up/sleep modes to reduce system-level power use. A selectable band-pass filter and pulse-count option complete the device functionality.

Features

• Integrated digitization
• Motion detection unit with interrupt function
• Low current: 3 µA at 1.8 V
• High-responsivity ceramic pyroelectric elements
• Dual detector with 2 × 1 mm² elements
• 110° field-of-view: PYD 1588
• 130° field-of-view: PYD 1598
• TO-5 metal housing for high EMI immunity
• Designed for straightforward integration into product designs

Applications

• Long-range motion detection (with lens)
• Energy-saving applications
• Intrusion alarms
• Horizontal mounting scenarios
• Battery-operated devices

Technical specifications

• Responsivity: 4.0 kV/W (typical)
• Noise: 3 digits (typ), 12 digits (max)
• Operating voltage/current: 1.8–3.6 V / 3 µA
• Housing with optical window: TO-5
• PYD1588 field-of-view (horiz/vert): 115° / 107°
• PYD1598 field-of-view (horiz/vert): 130° / 130°
