Thermopile infrared sensor TPiA 4.4T 4766

Product overview

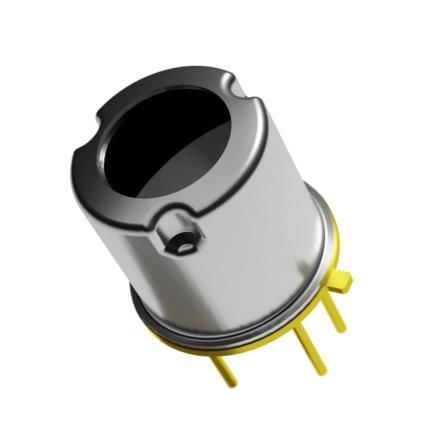

The TPiA 4.4T 4766 CoolEYE is a compact 4x4 infrared thermopile array providing low-resolution spatial thermal sensing. It integrates a small IR-transmissive lens and a calibrated thermopile ASIC with a digital I2C interface, suitable for cost-sensitive industrial applications requiring temperature detection and basic thermal mapping.

Details
This infrared array sensor delivers 16 pixels (4x4) to enable simplified spatial temperature detection with minimal signal processing. The calibrated ASIC inside a TO39 package provides conditioned outputs and an I2C digital bus for easy integration. Multiple lens options are available to adapt the field of view to application requirements.

Specifications
Product variants: TPiA 4.4T 4766 L2.5 / 4408 | TPiA 4.4T 4766 L3.9 / 4407 | TPiA 4.4T 4766 L5.5 / 4406
Lens options: L2.5 | L3.9 | L5.5
Max object temperature: 350°C (models L2.5, L5.5) | 320°C (one variant L3.9)
Field of view (entire sensor): 38° (L2.5) | 24° (L3.9) | 17° (L5.5)
Field of view (each pixel, 50% signal): 6.5° (L2.5) | 4.5° (L3.9) | 3.5° (L5.5)
Operating voltage: 3.3 V (optional 1.8 V)

Technical specifications

• Infrared sensor array: 4x4 pixels (16 thermopile elements)
• Integrated small IR-transmissive lens
• Calibrated thermopile ASIC providing conditioned temperature signals
• Digital I2C interface for data readout and configuration
• Package: ASIC mounted inside TO39 package
• Available lens options: L2.5, L3.9, L5.5 to adjust field of view
• Maximum object temperature: up to 350°C (model-dependent; one variant rated 320°C)
• Field of view (entire sensor / per pixel 50% signal): 38° / 6.5° (L2.5); 24° / 4.5° (L3.9); 17° / 3.5° (L5.5)
• Operating voltage: nominal 3.3 V (optional 1.8 V)
• Designed for low-cost, low-resolution spatial infrared sensing with simplified signal processing and easy system integration
