Thermopile infrared sensor TPiD 1S 0121

Product Overview

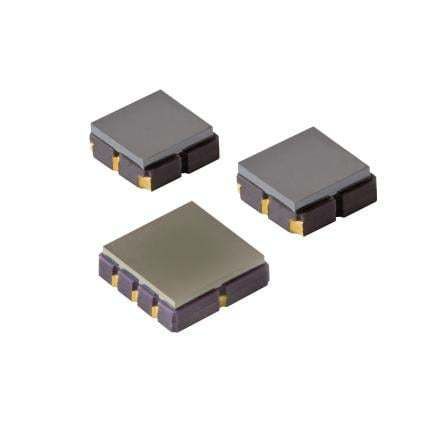

TPiD 1S 0121 and TPiD 1S 0222 are SMD thermopile detectors featuring two detector-chip sizes in surface-mount housings. The 0121 offers a compact 3 x 3 mm flat package for space-constrained host devices, while the 0222 provides a larger 3.8 x 3.8 mm sensing element for increased responsivity. Both models include an internal thermistor for temperature reference and thermopile temperature compensation. All SMD parts are supplied in tape and reel for automated SMT assembly.

General Information
Excelitas manufactures these thermopile detectors in small, industry-standard SMD housings compatible with high-volume surface-mount processes. The SMD versions incorporate the patented ISOthermal design to improve stability and reliability under thermal shock, enabling compact integration and cost-effective production for industrial temperature-sensing applications.

TPiD 1S 0121
Features

• 3 x 3 mm SMD package, flat housing
• Internal thermistor for temperature compensation
• Supplied in tape and reel for SMT assembly

Applications

• General-purpose temperature monitoring
• Thermometry
• Space-constrained devices and modules

TPiD 1S 0222
Features

• 3.8 x 3.8 mm SMD package with larger sensor element
• Internal thermistor for temperature compensation

Applications

• Pyrometry and non-contact temperature measurement
• General-purpose temperature sensing
• Space-constrained applications requiring higher sensitivity

Specifications

• Responsivity: 77 V/W
• Sensitivity S100: 56 µV/K
• Noise: 42 nV/√Hz
• Time constant: 15 ms
• Housing with optical window: SMD 3 x 3
• Field of view: 120°
