Thermopile infrared sensor TPiD 1T 0224

Overview

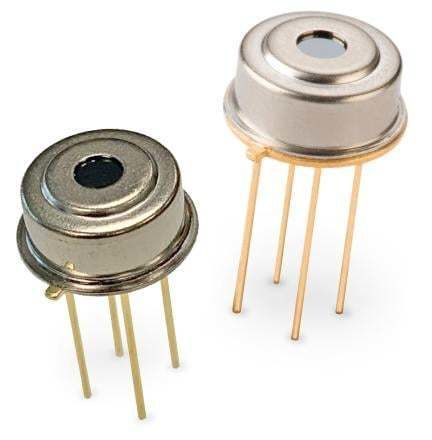

Excelitas TPiD 1T 0224 and TPiD 1T 0624 are thermopile detectors in TO-39 housings designed for non-contact temperature measurement and pyrometry. The devices incorporate a small round optical window that also acts as the aperture and benefit from Excelitas' patented ISOthermal design for enhanced thermal-shock resistance.

Series description
The series comprises two detector variants with different absorbing-area sizes. TPiD 1T 0224 has the smaller absorbing area for faster response, while TPiD 1T 0624 provides a larger absorbing sensor area for higher sensitivity. All models include an internal thermistor to provide temperature reference for thermopile compensation.

Features

• ISOthermal performance for improved thermal-shock stability
• TO-39 metal housing with integrated optical window/aperture
• Internal thermistor included for temperature compensation

Typical Applications

• Non-contact temperature measurements
• Pyrometry and infrared sensing

Technical specifications

• Responsivity: 45 V/W
• Sensitivity S100: 65 µV/K
• Noise: 35 nV/√Hz
• Time constant: 22 ms
• Housing with optical window: TO-39
• Field of view: 70°
• Models: TPiD 1T 0224 (smallest absorbing area), TPiD 1T 0624 (largest absorbing area, highest sensitivity)
• Internal thermistor included for temperature compensation
