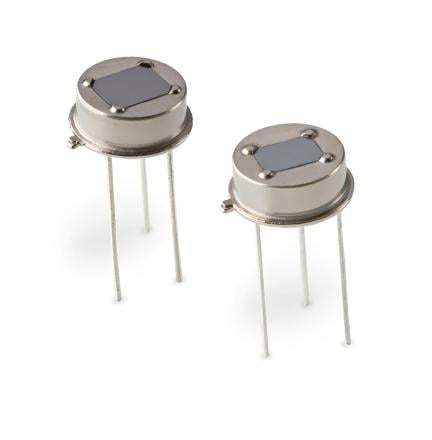

Pyro-electric motion sensor PYD 1384

high-sensitivity

Part number
PART/ PYD 1384 (LHi 874); PYD 1394 (LHi 944)

Product overview
The Excelitas PYD 1384 (replacement to LHi 874) / PYD 1394 (replacement to LHi 944) Pyrodetector Series is the low-profile variant of the PYD 1388/PYD 1398 standard analog pyrodetectors. The low-profile, dual-element pyrodetectors feature two sensing elements in series connection and a FET in a source-follower circuit, packaged in a low-profile TO-39 metal housing with an optical window.

Details
Both dual-element, low-profile pyrodetectors feature two sensing elements in opposed series connection and a source-follower circuit. The PYD 1384 represents the standard base model of the low-profile series. PYD 1394 is equipped with a larger window that provides a wider field-of-view. An additional drain resistor and output capacitor further reduce interference from electromagnetic disturbances for EMI-sensitive applications. Ideally suited for motion detection, their low-profile design allows two pyros to be integrated together to enable a 180° field-of-view.

Characteristics / Technical specifications

• Responsivity: 4.2 kV/W (typical)
• Noise: 20 µVpp (typical) / 50 µVpp (max)
• Operating voltage: 2.0–10 V
• Housing with optical window: TO-39
• PYD 1384, Field-of-view (horiz/vert): 95°/87°
• PYD 1394, Field-of-view (horiz/vert): 110°/110°
