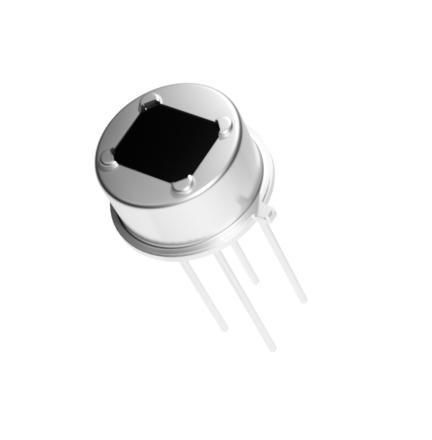

Pyro-electric motion sensor PYD 2597 DigiPyro®

indooroutdoorwireless

Product overview
The Excelitas DigiPyro PYD 2597 is a two-element pyroelectric motion detector designed for ultra-low-power remote motion-sensing applications. Operating down to 1.4 V with a quiescent current as low as 2 µA (Wake-Up mode at 1.8 V), it is optimized to extend battery life in battery-powered indoor and outdoor systems.

Description
The PYD 2597 integrates pyroelectric elements, analogue front-end and configurable digitization to deliver reliable motion detection across varying temperatures. Fully RoHS-compliant, the detector offers improved temperature stability and faster settling time, reducing false triggers from rapid temperature transients. Its Wake-Up mode and low-voltage operation make it suitable for smart sensors, wireless alarm systems and IoT motion nodes.

Features

• Ultra-low-power consumption:
  • Operating voltage range: 1.4–3.6 V
  • Quiescent current: 2 µA at 1.8 V (Wake-Up mode); 3 µA at 3.3 V
• Integrated digitization:
  • Configurable Motion Detection Unit (MDU) with interrupt output for event-driven systems
• Robust pyroelectric elements:
  • Enhanced temperature stability and faster settling time
  • Improved resilience to rapid temperature changes
  • Manufactured with RoHS-compliant materials

Specifications

• Responsivity: 3.2 kV/W (typical)
• Noise: 5 digits (typ), 8 digits (max)
• Operating power requirements: 1.4–3.6 V; quiescent current 2 µA (1.8 V)
• Housing with optical window: TO-5 package
• Field-of-view: 130°
• Two-element pyroelectric detector
• Wake-Up mode for ultra-low-power operation
• Configurable MDU with interrupt
• RoHS-compliant materials
