Thermopile infrared sensor TPiL 8T 2566

passive

Product overview

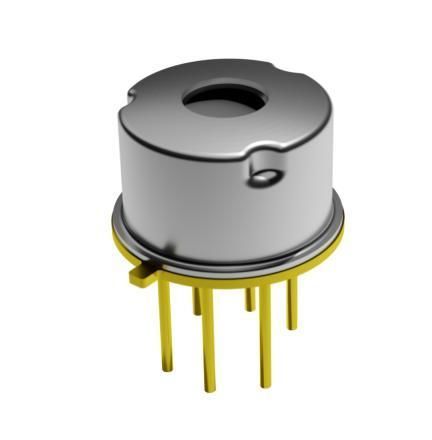

The Excelitas CoolEYE™ IR Array family includes the TPiL 8T 2566, a 1×8 focal‑plane thermopile line array providing calibrated per‑pixel temperature output via a digital I2C interface. The module integrates onboard sensor temperature measurement and is available with multiple lens options and a metal package for thermal stability and EMI shielding.

Key features

• Calibrated 1×8 focal‑plane thermopile array (8 pixels)
• Digital I2C interface delivering calibrated temperature per pixel
• On‑sensor temperature measurement and per‑pixel temperature calculation
• Selectable lenses for narrow field of view per pixel (L2.5, L3.9, L5.5)
• Metal package for enhanced temperature stability and electromagnetic shielding
• Operating voltage: 3.3 V (optional 1.8 V)

Specifications
Product | TPiL 8T 2566 L2.5 / 4402 | TPiL 8T 2566 L3.9 / 4401 | TPiL 8T 2566 L5.5 / 4400
Lens option | L2.5 | L3.9 | L5.5
Max object temperature | 280°C | 220°C | 290°C
Field of view (entire sensor) | 84° | 50° | 33°
Field of view (each pixel, 50% signal) | 8.5° | 6° | 3.5°
Operating voltage | 3.3 V (optional 1.8 V) | 3.3 V (optional 1.8 V) | 3.3 V (optional 1.8 V)

Applications

• Industrial temperature profiling and process monitoring
• Non-contact temperature measurement in automation and machine vision
• Hot‑spot detection, thermal sorting and predictive maintenance

Technical details

• Product family: CoolEYE™ IR Array
• Model: TPiL 8T 2566
• Sensor type: 1×8 focal‑plane thermopile array (8 pixels)
• Interface: Digital I2C
• Output: Calibrated temperature per pixel
• On-board sensor temperature measurement
• Lens options: L2.5, L3.9, L5.5
• Max object temperature (by lens): L2.5 = 280°C, L3.9 = 220°C, L5.5 = 290°C
• Field of view (entire sensor): L2.5 = 84°, L3.9 = 50°, L5.5 = 33°
• Field of view (each pixel, 50% signal): L2.5 = 8.5°, L3.9 = 6°, L5.5 = 3.5°
• Operating voltage: 3.3 V (optional 1.8 V)
• Package: Metal package for temperature stability and EMI shielding
